Tech Specs
Basic Information
| Product Name |
GPD WIN 5 |
| Product Positioning |
Handheld Game Console |
| Operating Syste |
Pre-Installed With Windows 11 (24H2) Home 64-bit |
Display
| Characteristic |

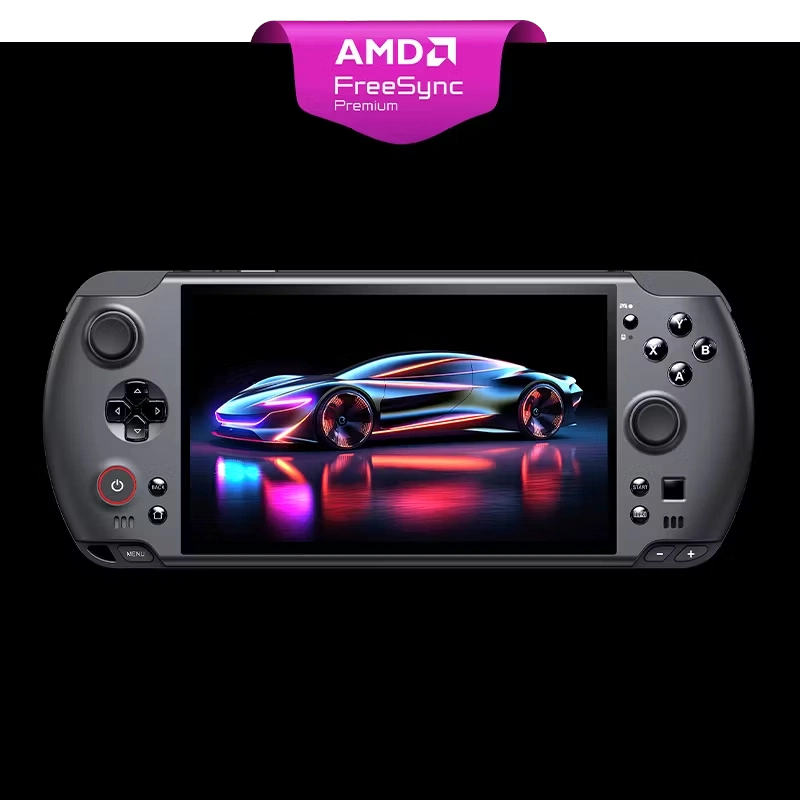

120Hz eSports monitor with AMD FreeSYNC™ Premium support, 6ms response time, and 100% sRGB wide color gamut |
| Touch Panel |
10-point Touch Control |
| Screen Type |
The Sixth Generation Of Corning Gorilla Glass, LTPS Technology, 500nit |
| Screen Size |
7 inches, native landscape orientation |
| Refresh Rate |
120Hz |
| Aspect Ratio |
16:9 |
| Screen Resolution |
1920×1080 |
| Pixels Per Inch |
315 PPI |
CPU
| Product model |
AMD Ryzen™ Al Max+ 395 |
AMD Ryzen™ Al Max 385 |
| # of CPU Cores / # of Threads |
16 C / 32 T |
8 C / 16 T |
| Base Clock |
3.0 GHz |
3.6 GHz |
| Max. Boost Clock |
5.1 GHz |
5.0 GHz |
| AI Performance |
50 TOPS |
50 TOPS |
| Floating-point Performance |
126 TOPS |
106 TOPS |
| Total Cache |
81.25 MB |
40.5 MB |
| Architecture |
Zen 5（Strix Halo） |
Zen 5（Strix Halo） |
| Process Size |
4nm |
4nm |
| TDP |
45W-75W |
45W-75W |
GPU
| Processor Graphics |
AMD Radeon 8060S |
AMD Radeon 8050S |
| Graphics Frequency |
2900 MHz |
2800 MHz |
| Compute Units |
40 CU |
32 CU |
| Shading Units |
2560 SU |
2048 SU |
| Floating-point Performance |
858.41 GFLOPS（FP64）
14.82 TFLOPS（FP32）
29.73 TFLOPS（FP16） |
782.33 GFLOPS（FP64）
11.76 TFLOPS（FP32）
25.73 TFLOPS（FP16） |
| Pixel Rate |
149.4 GPixel/s |
149.4 GPixel/s |
| Texture Rate |
373.6 GTexel/s |
298.9 GTexel/s |
| Video Memory |
System Shared |
System Shared |
| DP |
7680 x 4320 @60Hz |
7680 x 4320 @60Hz |
| DirectX |
12 Ultimate (12_2) |
12 Ultimate (12_2) |
| Vulkan |
1.3 |
1.3 |
| OpenGL |
4.6 |
4.6 |
Storage
| Memory |
32GB / 64GB |
| Memory Types |
LPDDR5x 8000 MT/s |
| Memory Channel |
Quad Channel |
| Hard Disk Type |
M.2 SSD |
| Hard Disk Port |
1 × M.2 (Socket 3) |
| Supported Specifications |

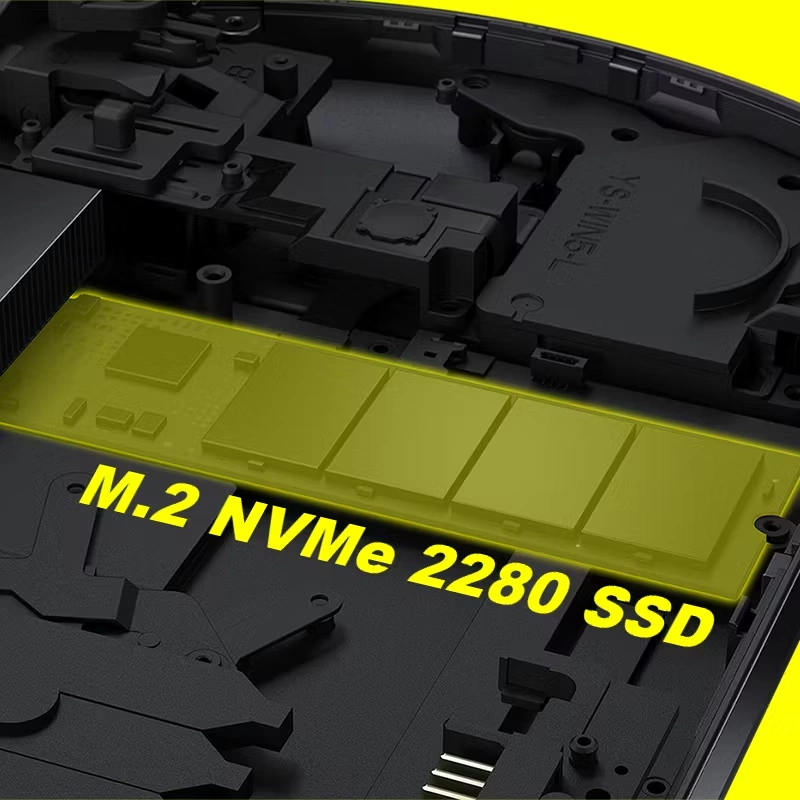

1 × M.2 NVMe 2280 |
| Standard Capacity |
1TB、2TB |
| Bus Specification |
PCIe 4.0 × 4 |
Multimedia Support
| Audio System |
Built-In Audio Chipset |
| Loudspeakers |

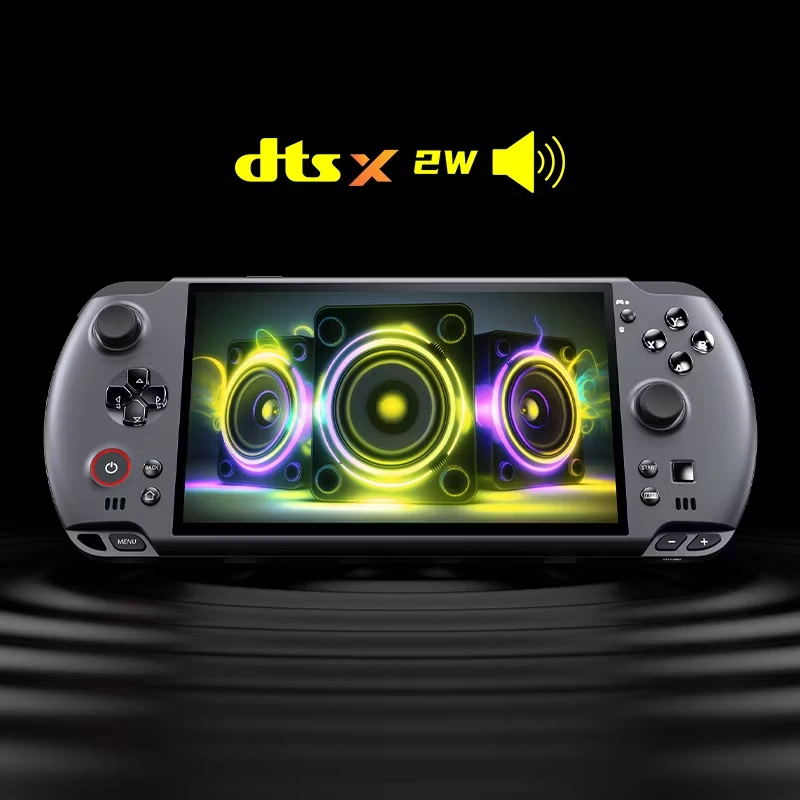

Equipped with dual 2W super linear speakers, both headphones and built-in speakers support DTS: X Ultra audio technology, simulating physical 7.1-channel surround sound |
| Microphone |
Dual integrated microphones |
Network Communications
| Wi-Fi |
Wi-Fi 6E (802.11 b/g/n/ac/ax)，AX210（1216） |
| Bands |
2.4GHz, 5GHz |
| Bluetooth |
5.3 |

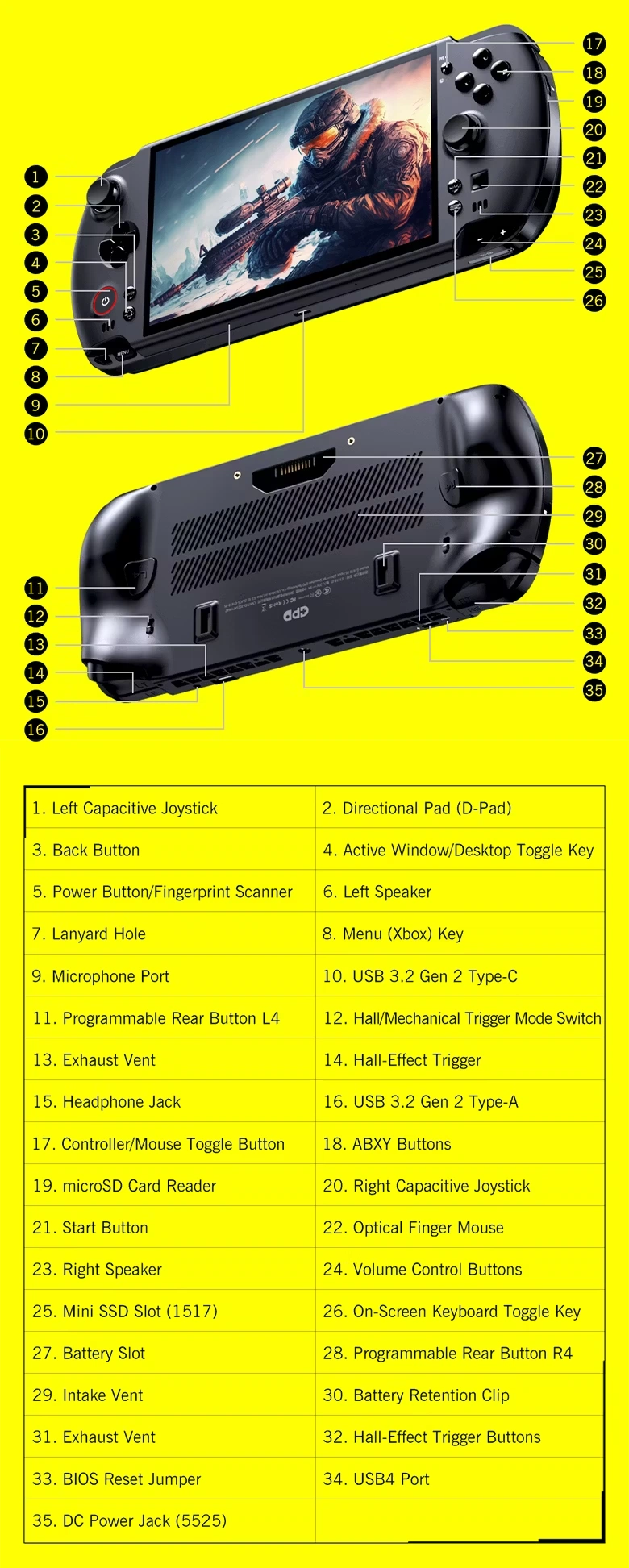

I/O Ports
| Video / Data / Charging |
1 × USB4 (40Gbps) supporting PD fast charging protocol & DisplayPort 2.1, with 100W PD charging (20V=5A) and DP output up to 7680×4320@60Hz;
1 × USB 3.2 Gen2 Type-C (10Gbps) featuring DisplayPort 2.1; does not support charging, DP enables 7680 x 4320 @60Hz display output;
1 × DC Port, 180W (20V/9A), Primary Charging Port;
1 × Mini SSD slot, PCIe Gen4 ×1, sequential read/write (MB/s): 1600. Compatible only with BIWIN Mini SSD, 512GB~2TB (sold separately);
1 × USB 3.2 Gen2 Type-A（10Gbps）; |
| microSD Slot |
SD 3.0 Protocol
Bus Port: UHS-I
Video Speed Class: V30
I/O Performance: A2, Theoretical Speed: Read 160MB/s, Write 120MB/s
Compatible: microSD / microSDHC / microSDXC |
| Audio Port |
1 x 3.5mm Headphone/Microphone Combo Jack, Compatible With Apple Headphones (US version) |
| BIOS Reset Port |
Supports |
I/O Device
| Power Switch |
Power button (with RGB backlighting) + Fingerprint scanner (Windows Hello™ certified) |
| Indicator Lamp |
Charging (Operating, Standby) Indicator Light |
| Mouse |
Mouse 1: Right thumbstick simulates mouse operation (toggle "Gamepad/Mouse" mode required)
Mouse 2: Optical finger mouse with press-to-confirm capability |
| Gamepad |
Capacitive Analog Stick – Ultra-high precision and sensitivity, 8000Hz sampling rate, 2000Hz reporting rate, 4000-step resolution, capable of detecting angle shifts as small as 0.09°. Features a sunk design with L3/R3 button support for depressible clicks;
Limit Ring: Made of POM material, providing superior wear resistance and durability, eliminating wear debris. Guide Ring: Constructed with a metal ring, featuring an ultra-low coefficient of friction (<0.1), delivering significantly smoother operation;
The device features a unified D-pad, silicone rubber ABXY buttons with dual-layer silk-screened △○×□ symbols, along with a Back button, Start key, and an Xbox-style Menu key;
LT / RT are Hall-effect trigger buttons; LB / RB;
LT/RT feature dual-mode toggle switches with long/short travel modes: Long travel: 256-step progressive analog (0~255); Short travel: Binary digital mode (0 or 255);
Rear paddle buttons L4/R4, mappable and programmable |
| Function Button |
Volume Up/Down Buttons, On-Screen Keyboard Toggle Button, desktop toggle shortcut (Win+D), On-Screen Keyboard Shortcut (Ctrl + Win + O), Controller/Mouse Mode Toggle Button |
| Vibration |
Dual Haptic Motors, Software-Controlled with Modes: Off / Low / High Intensity |
| Sensor |
6-Axis Design: 3-Axis Accelerometer + 3-Axis Gyroscope (BMI260) |
Battery
| Battery Type |

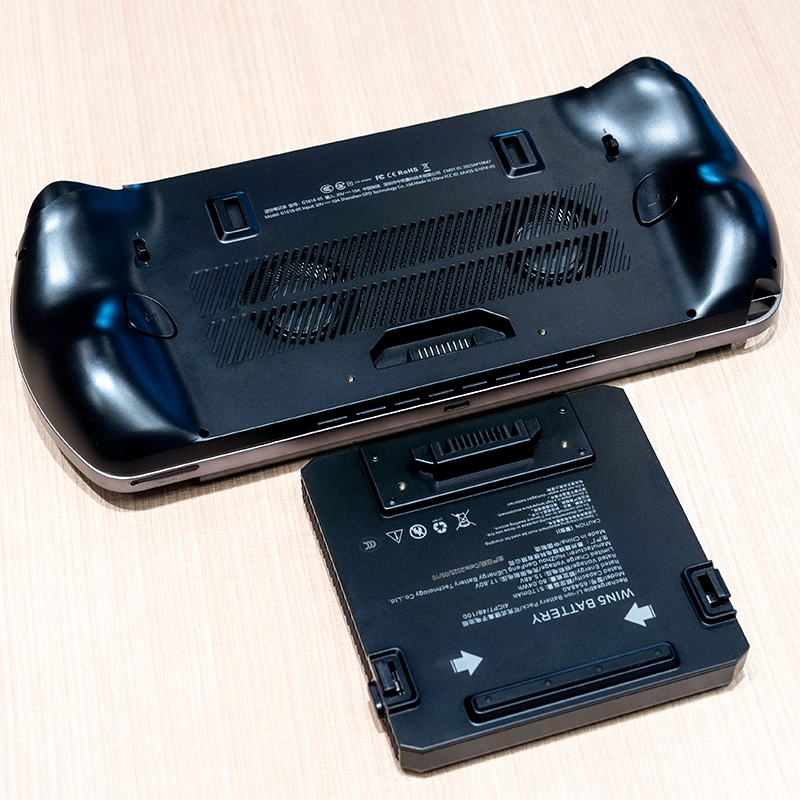

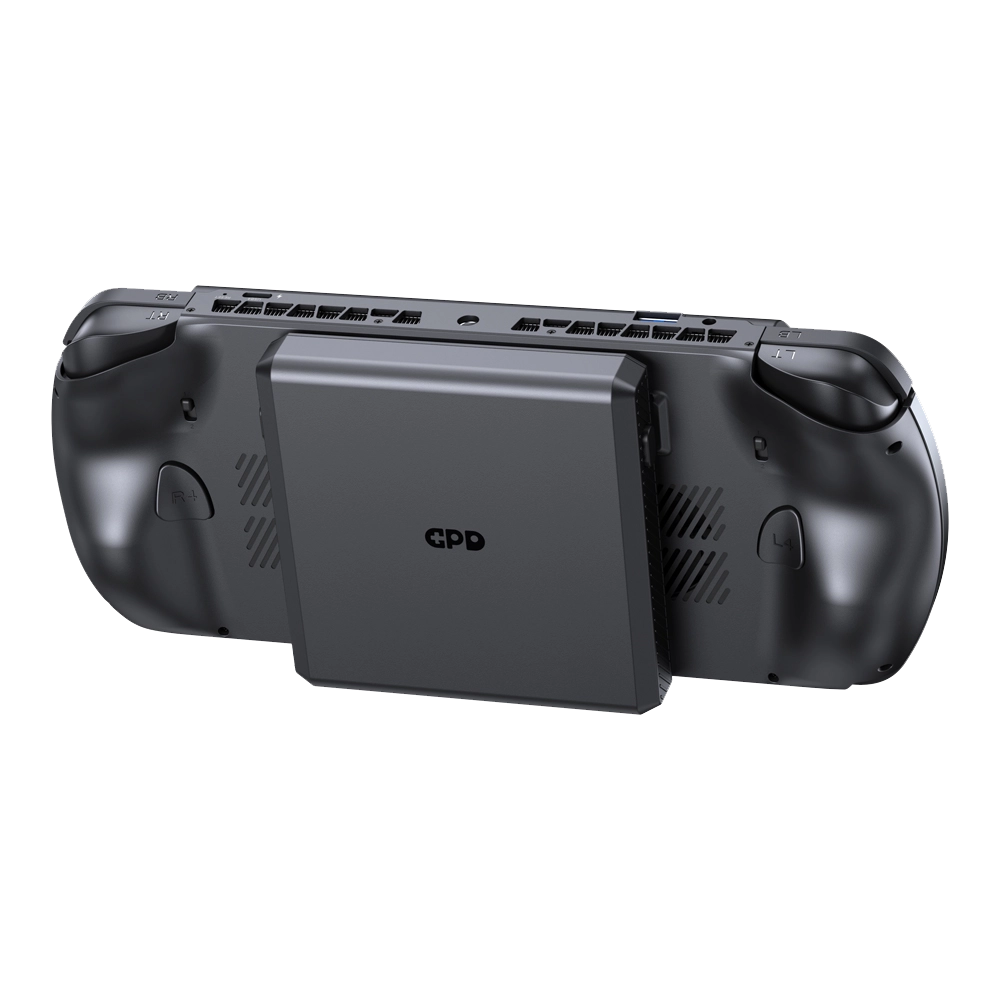

External detachable polymer lithium battery (dual-mode: back-mounted/extension cord), available for separate purchase |
| Battery Capacity |
80Wh |
| Battery Net Weight |
350g |
| Battery Size |

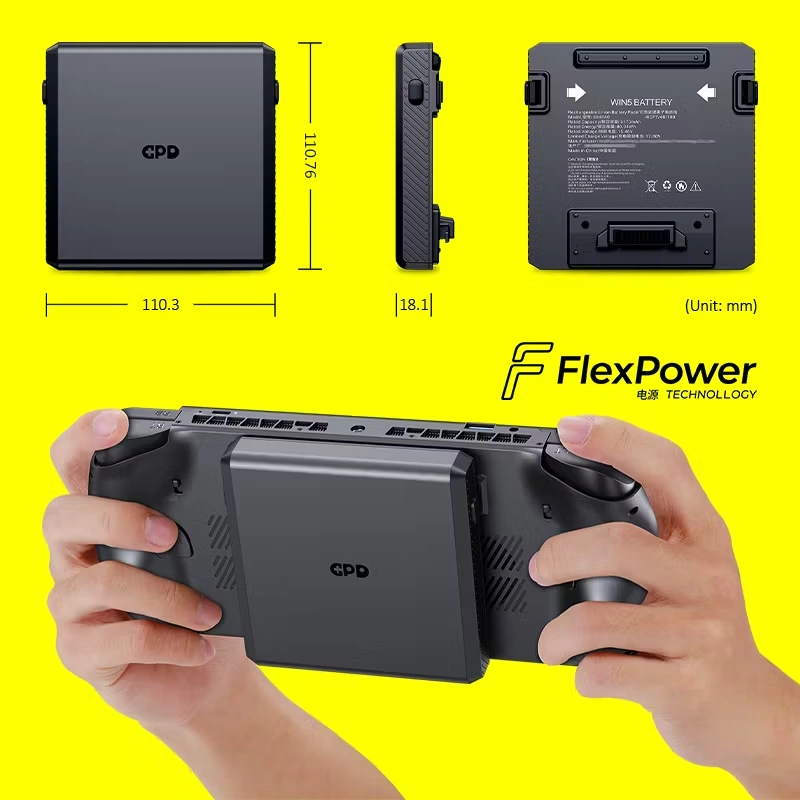

110.76mm × 110.3mm × 18.1mm |
| Battery Life |
Continuous intensive operation: 2 hours; Moderate usage: 3-4 hours; Light-duty operation: 6 hours (highly dependent on usage scenarios and environmental conditions) |
| Extension Cable |
Dedicated extension cord for connecting WIN 5 with the battery |
| DC Power |
180W Dedicated DC Power Adapter for AI PC; Input: 100–240V AC, 50Hz/60Hz; Output: 180W (20V==9A Continuous) |
| DC Power Cord |
Configurable Regional Plug Options: CN/US/UK/EU/JP standards available for regional compatibility. CN, US, JP, and AU plugs are interchangeable |
Device Appearance
| Weight |
565g |
| Size |
267mm × 111.6mm × 24.21mm |
| Shell Material |
LG-DOW 121H Impact-Resistant Aviation ABS Synthetic Resin, UL94 V-0 Fire-Retardant Grade |
| Shell Color |
Black |
| Thermal Design |

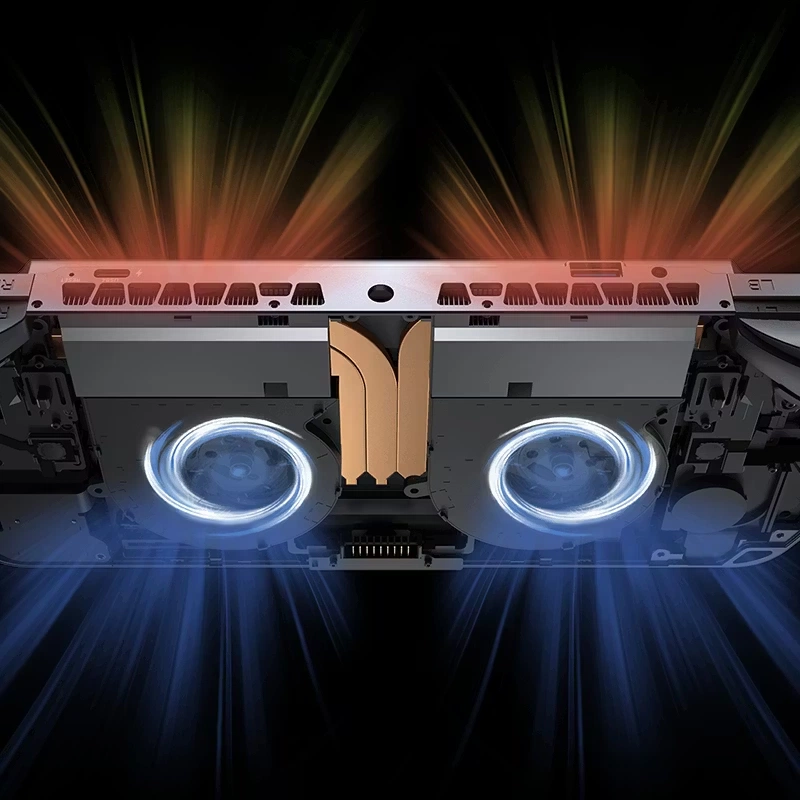

Active Cooling Solution: Dual-Fan + Quad-Heat-Pipe Configuration |
Accessories
|
1 × GPD WIN 5
1 × External Battery (80Wh)
1 × Battery to Host Dedicated Connector
1 × DC Power Adapter
1 × DC Power Cable
1 × Warranty Card
1 × Product Manual |

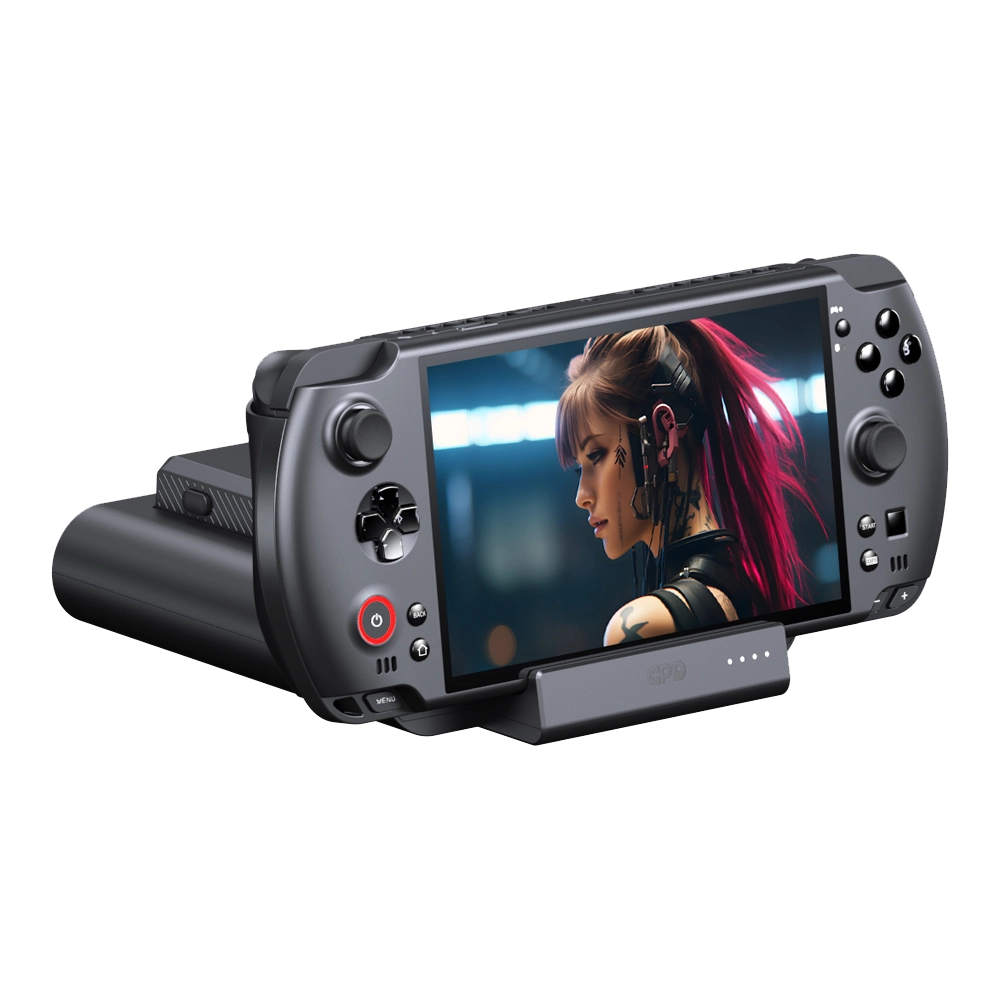

| Dock（Sold separately） |
1 × USB Type-C port, charging only, supports PD protocol fast charging and standard phone chargers, with a minimum supported output power of 10W for phone chargers;
3 × USB 3.2 Gen 2 Type-A ports, 10Gbps;
1 × HDMI 2.1 (FRL), supporting: 1080P@240Hz, 2K@240Hz, 4K@144Hz，8K@60Hz;
1 × RJ45 Ethernet port, 1Gbps;
1 × Battery Charging Slot;
Size: 190.07mm × 169.5mm × 38mm |
Data Specifications:
The memory capacity, USB transfer rates, and other specs on this page are theoretical values. Dimensions, thickness, weight, screen opening angles, etc., are design theoretical values, and reasonable errors may exist in actual measurements. Unless specified, data comes from our lab. Software versions, interfaces, names, etc., may vary slightly by product batch due to real-time updates. Refer to actual usage.
*Supports USB-C adapters with 20V output (≥65W). When using a USB-C adapter while powered on, priority is given to motherboard power supply; charging starts slowly after meeting power demands; battery supplements motherboard power.
*Battery life varies by model, configuration, apps, features, usage, wireless functions, and power settings. Maximum battery capacity decreases over time.
*Key components include motherboard, screen, memory, storage, keyboard, and power adapter.
