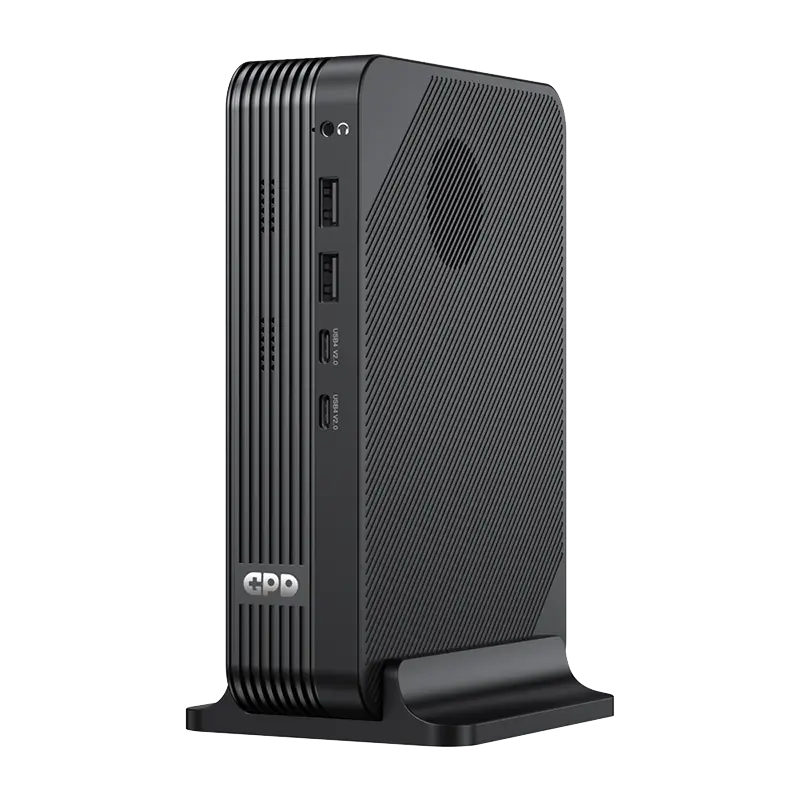

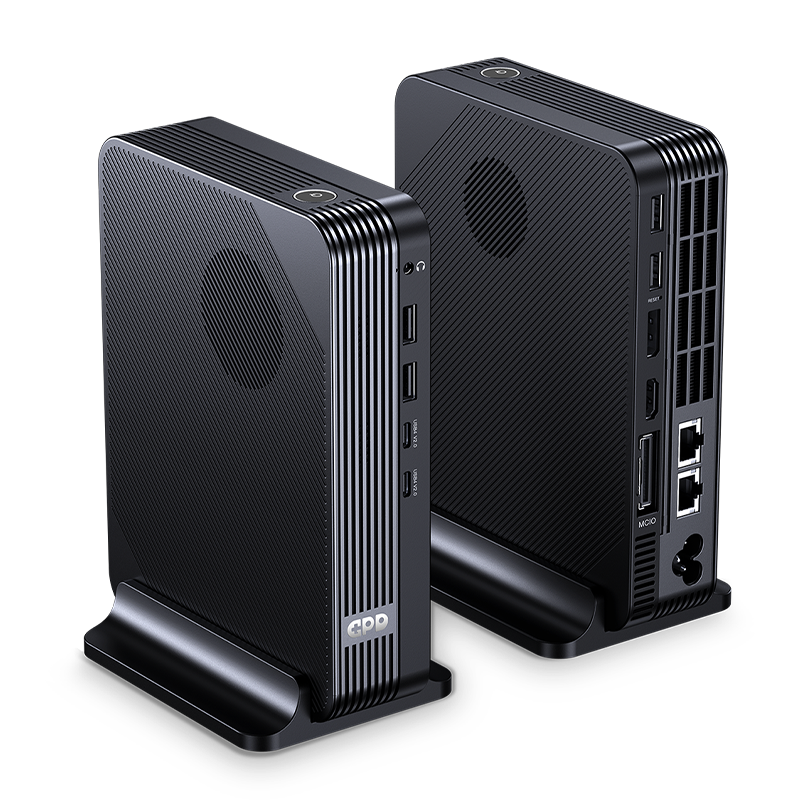

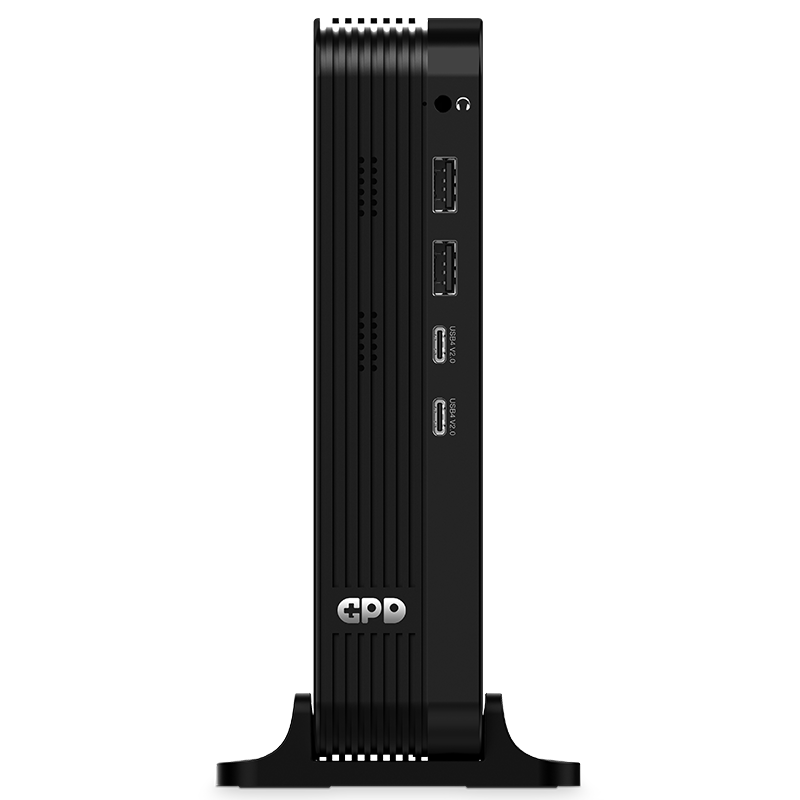

GPD BOX Mini PC

$1,799.00 USD
Shipping fees will be calculated at checkout.
  • Intel® Core™ Ultra X7 358H / 7 356H

  • 32GB / 64GB LPDDR5x 8533 MT/s

  • 1 × 512GB – 4TB NVMe M.2 SSD (PCIe Gen 4 × 4)

  • M.2 Slot、 MCIO Port、USB4 V2.0、USB-A、DisplayPort、HDMI、Ethernet

CPU: 356H
RAM: 32GB+1TB
Quantity
  • 📢 GPD New product pre-sale

This product is currently in the pre-sale stage. GPD has not yet confirmed the final shipping date, and the estimated arrival time is the end of August (may be delayed).

Pre-sale items can be cancelled at any time before shipment. If you wish to cancel your order, please contact our customer service email: service@gpd-minipc.com

Description

Tech Specs

Basic Information

Product Name GPD BOX
Product Positioning NUC / Mini PC
Operating Syste Pre-Installed With Windows 11 (25H2) Home 64-bit

CPU

Product model Intel® Core™ Ultra X7 358H Intel® Core™ Ultra 7 356H
Total Cores 4P + 8E + 4LPE 4P+8E+4LPE
Base Clock 1.9 GHz / 1.5 GHz / 1.5 GHz 1.9 GHz / 1.5 GHz / 1.5 GHz
Max. Boost Clock 4.8 GHz / 3.7 GHz / 3.3 GHz 4.7 GHz / 3.7 GHz / 3.3 GHz
Overall TOPS 180 TOPS 100 TOPS
Total Cache 44.5 MB
Architecture Panther Lake
Process Size 1.8nm
TDP 25W to 80W, 15W minimum guaranteed
AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

iGPU

Processor Graphics Intel® Arc™ B390 GPU Intel® Graphics
Graphics Frequency 2.5 GHz 2.45 GHz
Xe-core 12 4
Execution Units 96 EUs 32 EUs
Arithmetic Logic Units 1536 ALUs 512 ALUs
0.461 TFLOPs/s(FP64) 0.157 TFLOPS(FP64)
7.68 TFLOPs/s(FP32) 2.529 TFLOPS(FP32)
15.362 TFLOPs/s(FP16) 4.773 TFLOPS(FP16)
0.323 TIOPs/s(INT64) 0.120 TIOPs/s(INT64)
2.345 TIOPs/s(INT32) 0.824 TIOPs/s(INT32)
20.443 TIOPs/s(INT16) 8.467 TIOPs/s(INT16)
20.874 TIOPs/s(INT8) 8.696 TIOPs/s(INT8)
H.264 Hardware Encode/Decode Yes
H.265 (HEVC) Hardware Encode/Decode Yes
H.266 (VVC) Hardware Encode/Decode Decode Only
AV1 Encode/Decode Yes
Intel® Quick Sync Video Yes
Intel® DL Boost Yes
AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU, WebNN
Video Memory System Shared
DisplayPort 2.1 UHBR20 Total Bandwidth: Supports up to 80 Gbps (UHBR20), with native output (uncompressed) supporting a maximum resolution of 6K @ 60Hz. With DSC compression, 8K @ 60Hz and 5K @ 120Hz outputs are supported,requiring a compatible display and DP 2.1 certified UHBR cable.
HDMI 2.1 FR Total Bandwidth: Supports up to 48 Gbps. With DSC compression: Capable of 8K @ 60Hz and 5K @ 120Hz output. Requires a display that supports DSC decoding and a certified Ultra High Speed HDMI® cable.
DirectX 12 Ultimate (12_2)
Vulkan 1.4
OpenGL 4.6
OpenCL 3
Shader Model 6.6

NPU

NPU Peak TOPS (Int8) 50 TOPS
Sparsity Support Yes
AI Software Frameworks Supported by NPU OpenVINO™, WindowsML, WebNN, ONNX RT

Storage

Memory 32GB / 64GB LPDDR5x 8533 MT/s
Memory Channel Dual-channel
Hard Disk Port 2× M.2 (Socket 3): One SSD pre-installed, one slot reserved
Supported Specifications M.2 NVMe 2280
Standard Capacity 512GB ~ 4TB
Bus Specification PCIe 5.0 × 4 / PCIe 4.0 ×2
Transfer Protocol NVMe 2.0

Multimedia Support

Audio Port 1× 3.5mm Headphone/Microphone Combo Port, compatible with Apple headsets (American Standard)
Speakers Dual 2W Stereo Speakers with DTS:X Ultra Support
Microphone Built-in Microphone

Network Communications

LAN 2 × 10/100/1000/2500 Mbps, 2.5G LAN
Wi-Fi M.2 Port: CNVio2, Wi-Fi 6E (802.11 b/g/n/ac/ax), AX211 (M.2 2230), Swappable and Removable
Bands 2.4GHz, 5GHz
Bluetooth 5.3, Supports LE Audio
TPM module dTPM 2.0. Complies with government and industry security certification requirements, including FIPS 140-2.

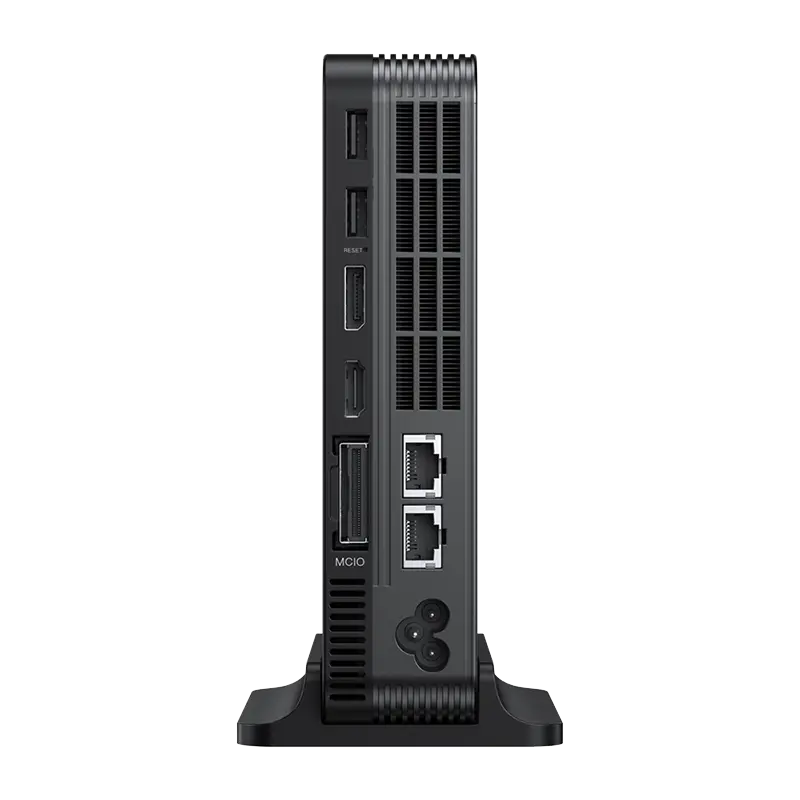

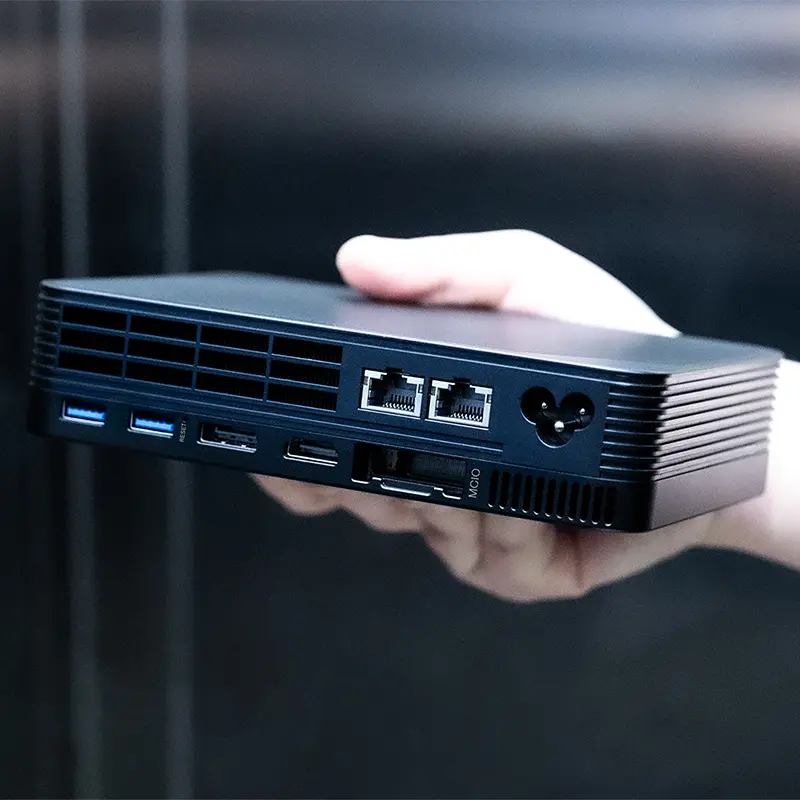

I/O Ports

Video / Data / Charging 2× USB4® Version 2.0 (supports DisplayPort™ 2.1; PD power delivery not supported)
1× DisplayPort™ 2.1 UHBR20
1× HDMI 2.1 FRL
4× USB 3.2 Gen 2 Type-A
1× IEC C6 Power Inlet, Input: AC 100-240V, 50Hz/60Hz. Primary charging port.
N/A 1× MCIO Port
Physical Port: MCIO (Mini Cool Edge IO) 74-Pin
Transmission Standard: PCIe Gen 5 x8 (Backwards compatible with Gen 4/3)
Theoretical Bandwidth: 256 Gbps (Simplex) / 512 Gbps (Full-Duplex Aggregate)
BIOS Reset Port ×1
Power Switch Power Button: Integrated Windows Hello & Linux Fingerprint Sensor with RGB Backlight. System Status LED: Power On (Solid White), Sleep (Breathing White), Hibernate / Power Off (Solid Red).

Accessories‌

MCIO 8i to 8i PCIe Gen 5 Cable Length: 0.5m, included as standard with the Ultra 7 356H Edition
Vertical Stand Dimensions: 110 ×85× 22 mm (Included)

Power Info

DC Power Built-in GaN Power Supply. Input: 100-240V AC, 50/60Hz; Output: 160W (20V==8A)
CMOS Battery CR3220,2PIN 3.3V
IEC C5 Power Cord Length: 0.9m
DC Power Cord Configurable Regional Plug Options: CN/US/UK/EU/JP standards available for regional compatibility. CN, US, JP, and AU plugs are interchangeable

Device Appearance‌

Weight 940g
Size 175×134×39.5mm, 0.926L
Shell Material Aluminum-magnesium alloy, PC 94V-0
Shell Color Black
Thermal Design Active Cooling: Dual Fans + Four Heat Pipes

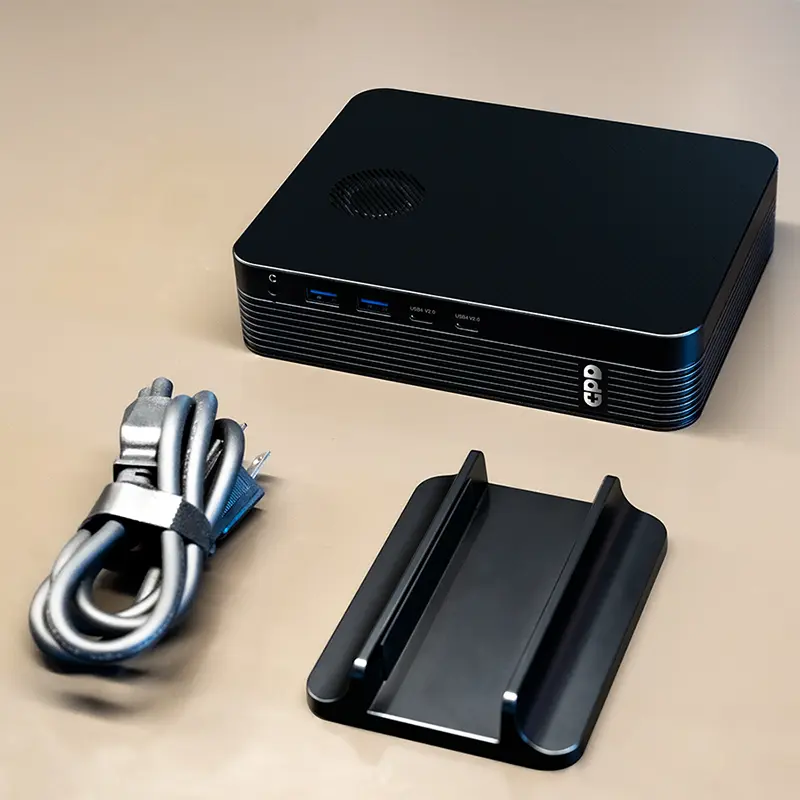

Accessories

1× GPD BOX
1× MCIO 8i to 8i (PCIe 5.0) Cable (Included only with Ultra 7 356H Edition)
1× 1m HDMI 8K High-Speed Digital Cable
1× Vertical Stand
1× IEC C5 Power Cord
1× Warranty Card‌
1× Product Manual
