Tech Specs
Basic Information
| Product Name |

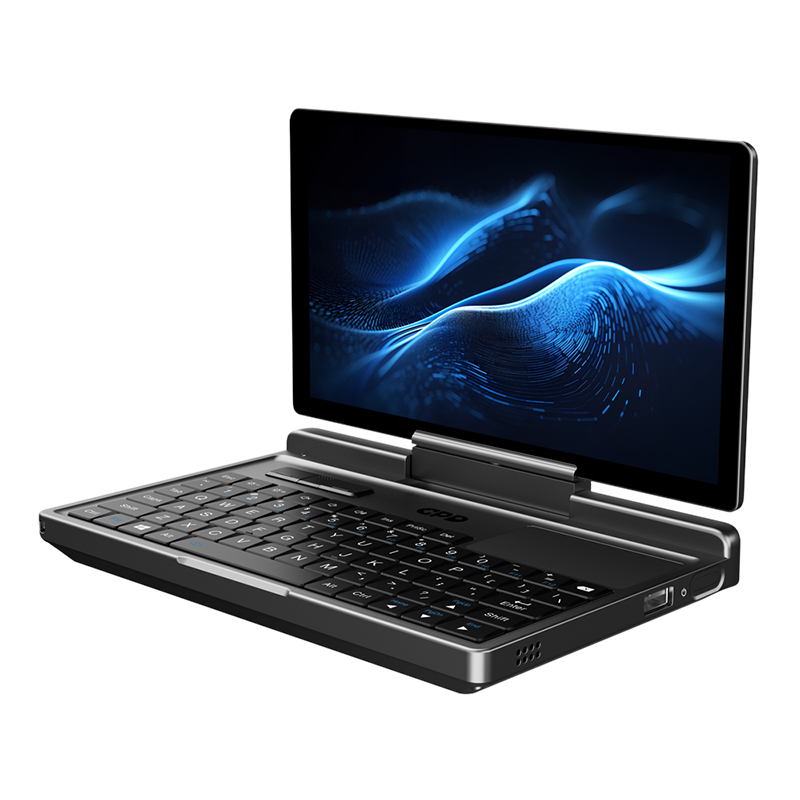

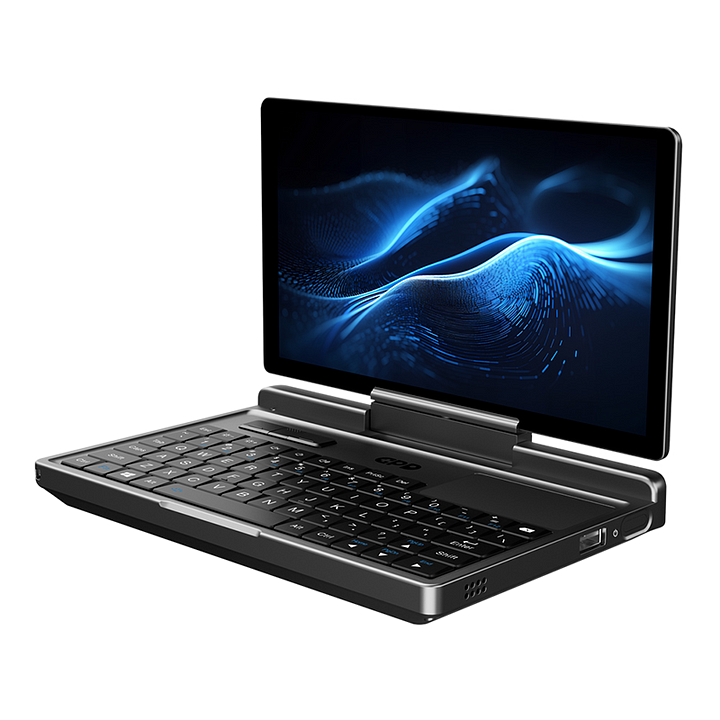

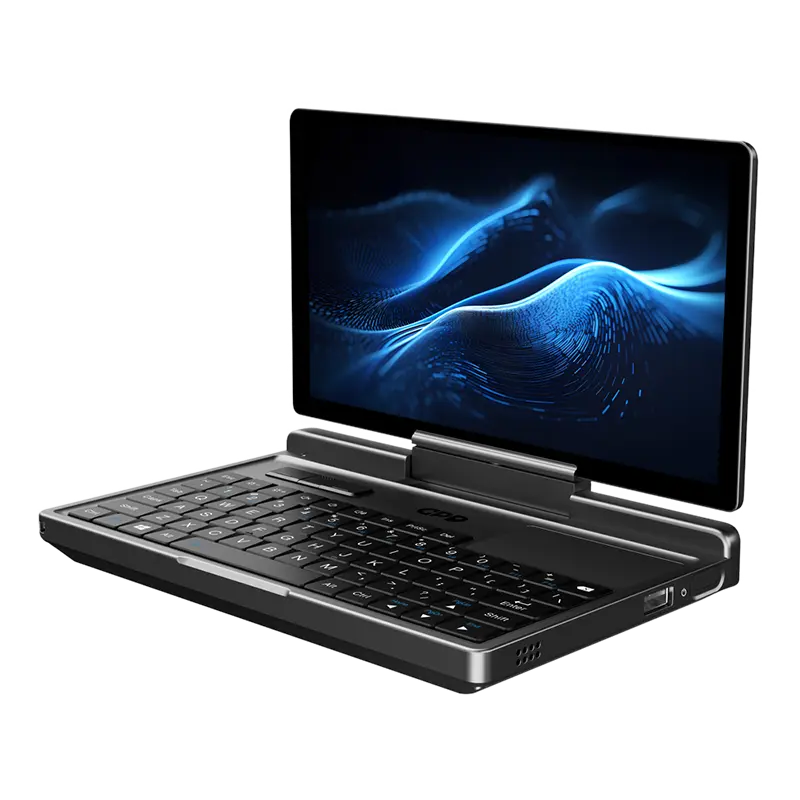

GPD MicroPC 2 |
| Product Positioning |
A mobile productivity tool with abundant ports |
| Operating System |
Windows 11 Home |
Display
| Characteristic |

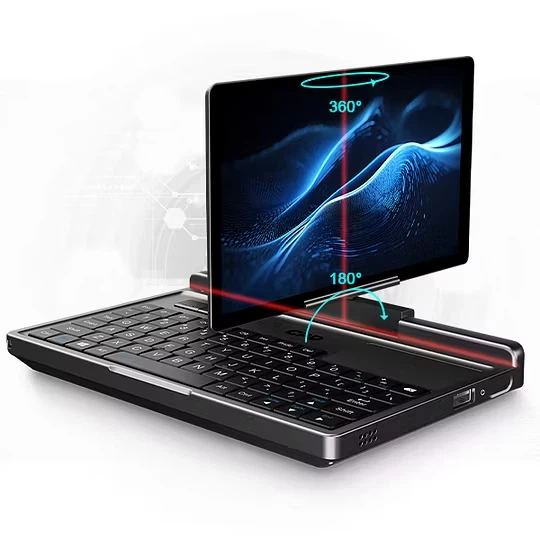

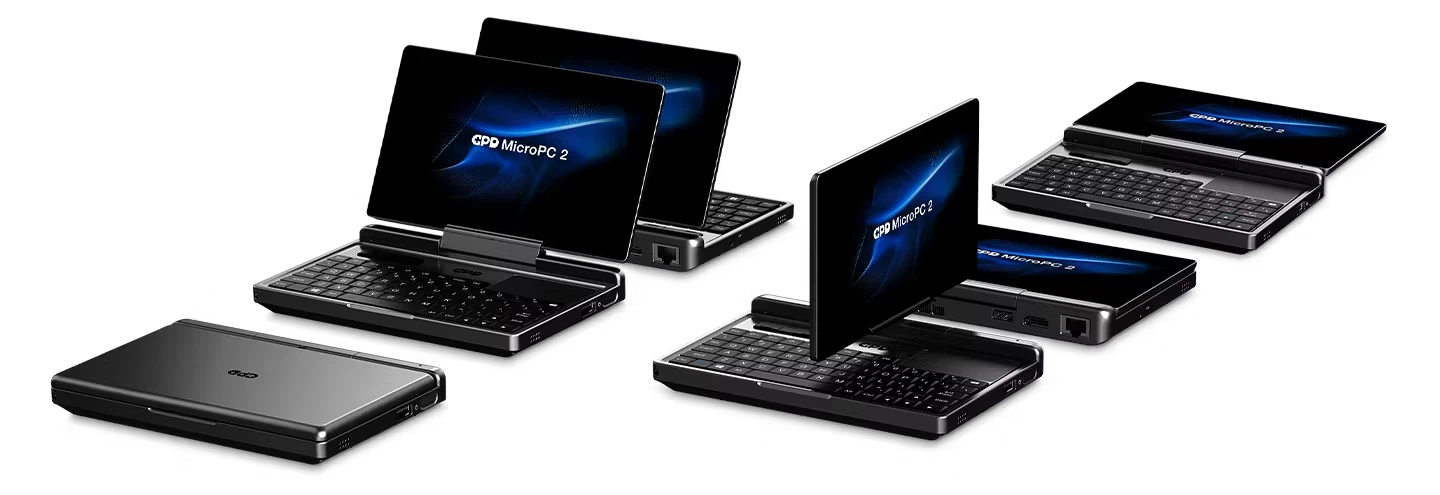

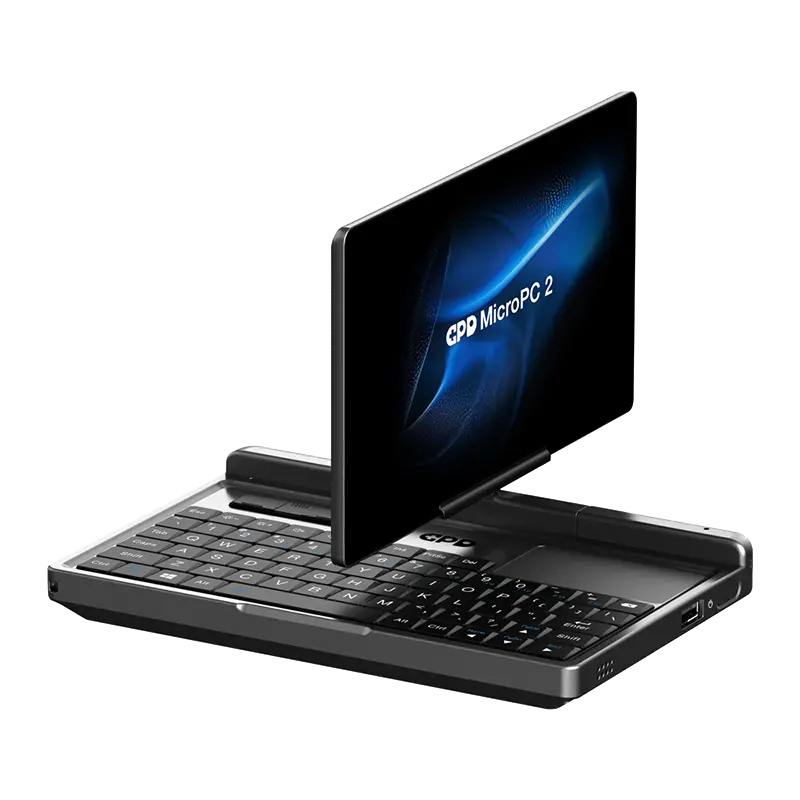

Rotating reverse hinge design, supports tablet mode, infinite T-shaped hinge, maximum opening angle of 180 degrees |
| Touch Panel |
10-point Touch Control |
| Screen Type |
Sixth-generation Corning Gorilla Glass, LTPS technology, AF anti-fingerprint coating, 500 nits brightness |
| Screen Size |
7 Inches (Retina Display) |
| Refresh Rate |
60Hz |
| Aspect Ratio |
16:9 |
| Screen Resolution |
1920×1080 |
| Pixels Per Inch |
314 PPI |
CPU
| Product model |
Intel® Core™ i3-N300 |
Intel® Processor N250 |
| Total Cores / Total Threads |
8C / 8T |
4C / 4T |
| Max Turbo Frequency |
3.8 GHz |
3.8 GHz |
| Cache |
6 MB |
6 MB |
| Code Name |
Alder Lake-N |
Twin Lake |
| Process Size |
Intel 7 |
Intel 7 |
| TDP |
15 W |
15 W |
GPU
| Processor Graphics |
Intel® UHD Graphics
|
Intel® Graphics |
| Graphics Max Dynamic Frequency |
1.25 GHz |
1.25 GHz |
| Execution Units |
32 EU |
32 EU |
| Shading Units |
256 SU |
256 SU |
| Floating-point Performance |
768.0 GFLOPS（FP16）
384.0 GFLOPS（FP32）
96.00 GFLOPS（FP64） |
768.0 GFLOPS（FP16）
384.0 GFLOPS（FP32）
96.00 GFLOPS（FP64） |
| Pixel Rate |
6.000 GPixel/s |
6.000 GPixel/s |
| Texture Rate |
12.00 GTexel/s |
12.00 GTexel/s |
| Video Memory |
Shared Memory |
Shared Memory |

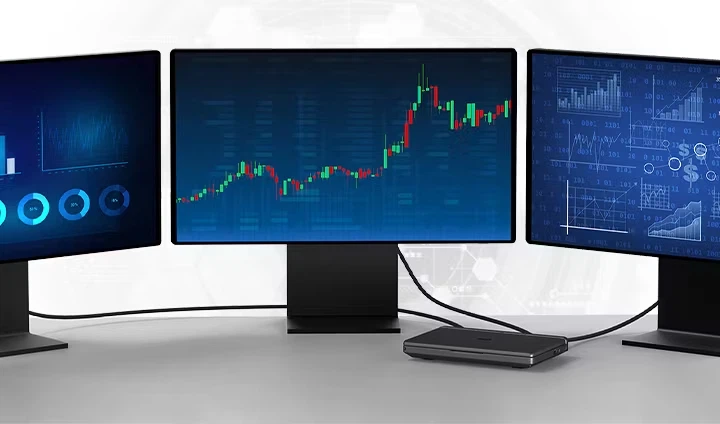

| HDMI |
4096 x 2160@60Hz |
4096 x 2160@60Hz |
| DP (USB Type C) |
4096 x 2160@60Hz (Not supporting DSC encoding/decoding) |
4096 x 2160@60Hz (Not supporting DSC encoding/decoding) |
| DirectX |
12.1 |
12.1 |
| OpenGL |
4.6 |
4.6 |
Storage
| Memory |
16GB |
| Memory Types |
LPDDR5 4800 MT/s |
| Memory Channel |
Single-channel |

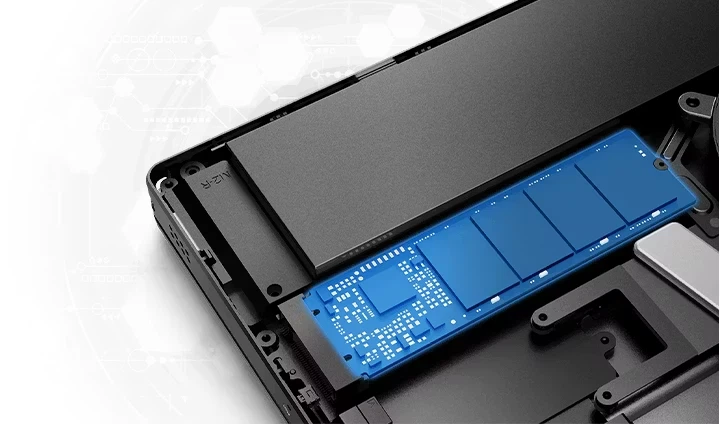

| Hard Disk Type |
M.2 SSD |
| Hard Disk Interface |
M.2（Socket 3）× 1 |
| Supported Specifications |
M.2 NVMe 2280 × 1, supports double-sided device layout |
| Standard Capacity |
512GB, expandable with no capacity limit |
| Bus Specification |
PCIe Gen3 × 4 |
| Transfer Protocol |
NVMe 1.3 |
Multimedia Support
| Audio System |
Built-In Audio Chipset（Realtek ALC269Q） |
| Loudspeakers |
Equipped With 2 Built-In Hyper-Linear Speakers |
| Microphone |
Built-In Microphone |
Network Communications

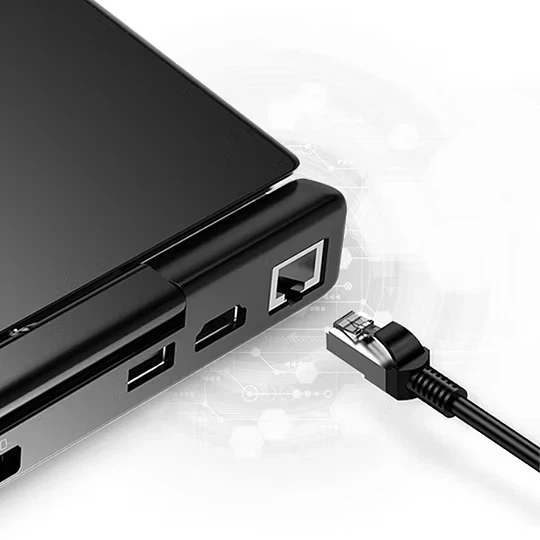

| LAN（RJ45) |
Realtek Ethernet Controller RTL8125BG-CG, 2.5G × 1 |
| Wi-F |
Wi-Fi 6（AX201） |
| Bands |
2.4 GHz, 2×2, 40 MHz, 574 Mbps
5 GHz, 2×2, 160 MHz, 2402 Mbps2402 Mbps |
| Max Speed |
2402 Mbps |
| Bluetooth |
5.2 |

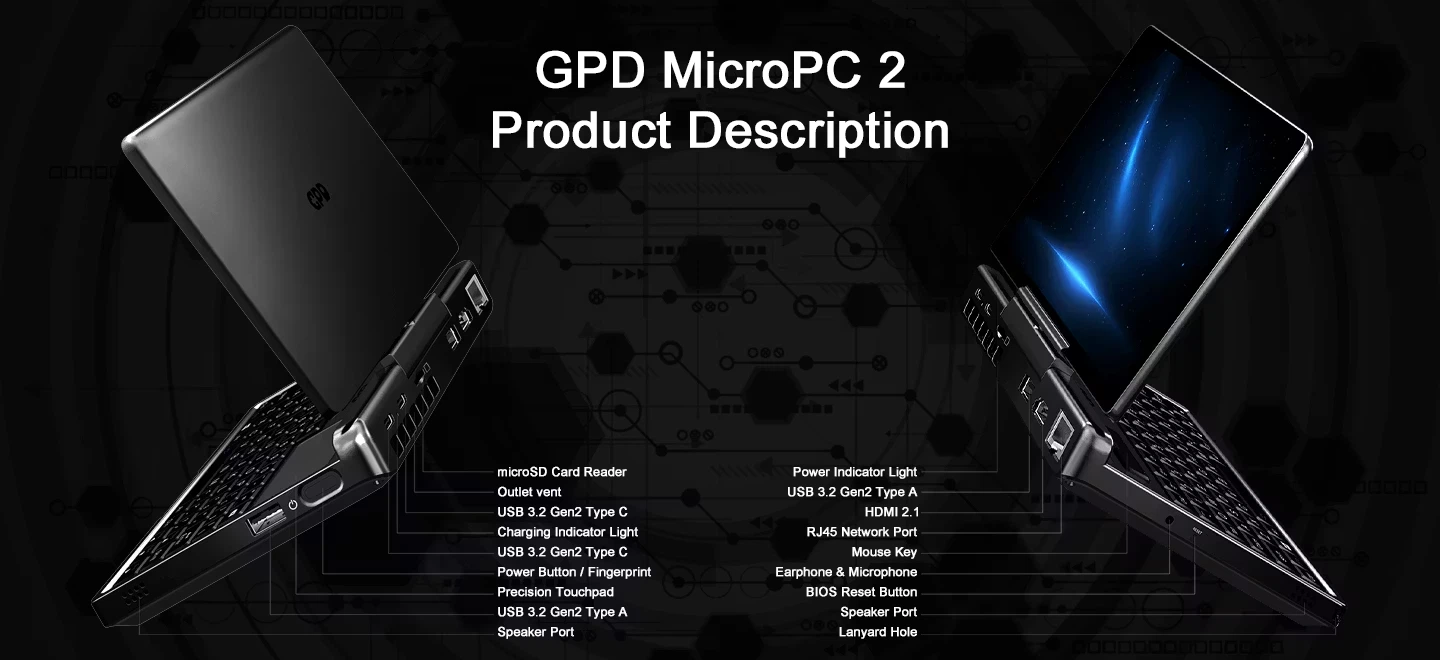

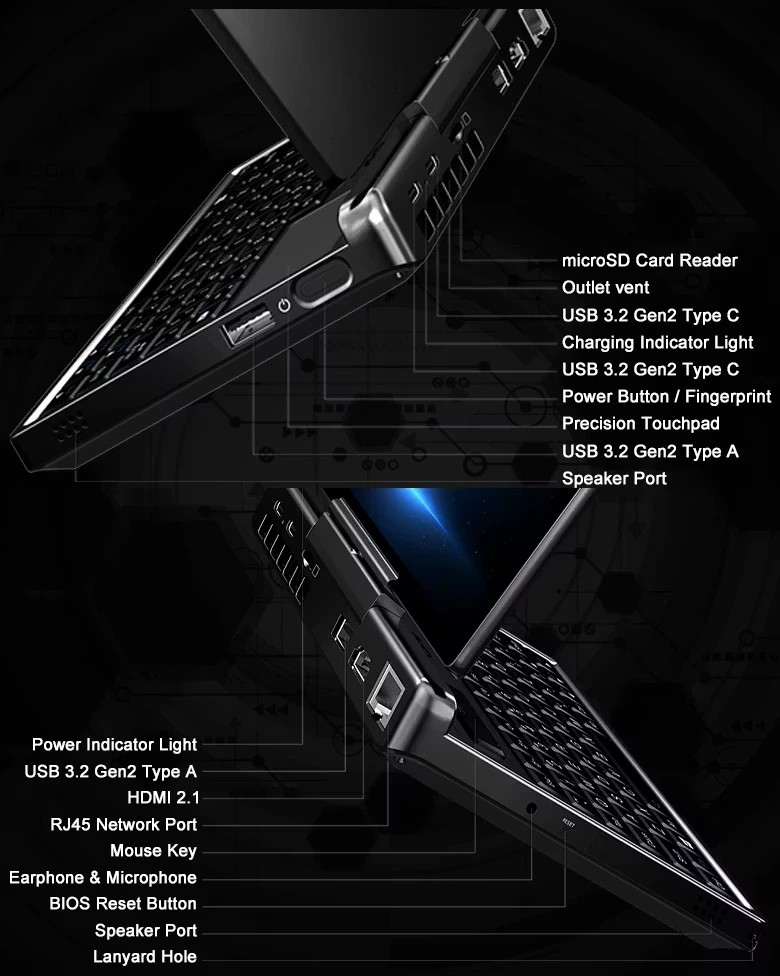

I/O Ports
| Video / Data / Charging |
USB 3.2 Gen2 Type-A × 2 (10Gbps)
USB 3.2 Gen2 Type-C × 2, fully functional port, w/ PD fast charging protocol & DisplayPort 1.4
HDMI 2.1 (TMDS) × 1, 4096 x 2160@60Hz |
| microSD Slot |
SD 3.0 Protocol
Bus interface: UHS-I
Video Speed Class: V30
I/O Performance: A2, Theoretical Speed (R/W) : 160MB/s
Compatible: microSD / microSDHC / microSDXC |
| Audio Port |
3.5mm headphone/microphone combo port, compatible with Apple headphones (US standard) × 1 |
| BIOS Reset Port |
Supports |
I/O Device
| Power Switch |

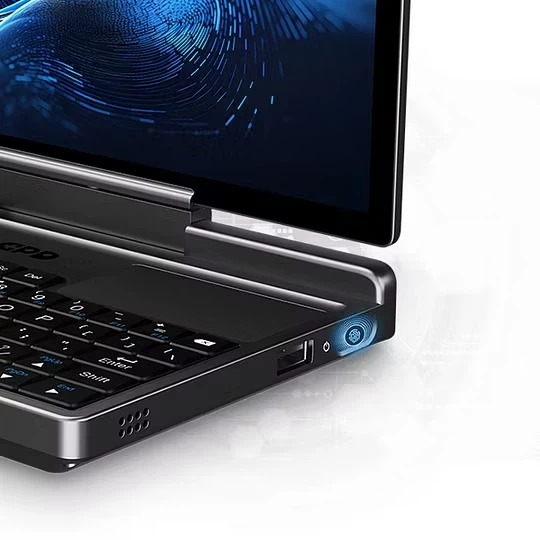

Power + fingerprint recognition two-in-one key |

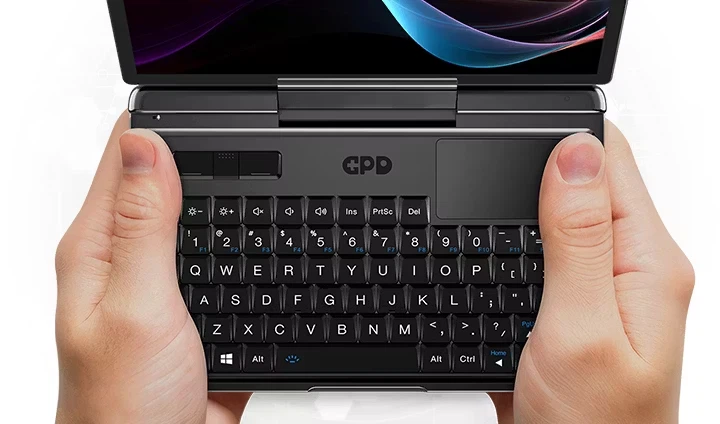

| Keyboard |
Wedge-shaped metal membrane keys, QWERTY full keyboard, with backlighting |
| Indicator Lamp |
Charging indicator light, Operation indicator light |
| TouchPad |
Precision TouchPad (PTP) |
| Mouse |
Left, middle, right button |
| Sensor |
G-Sensor |
Battery
| Battery Type |
Lithium Polymer Battery |
| Battery Capacity |

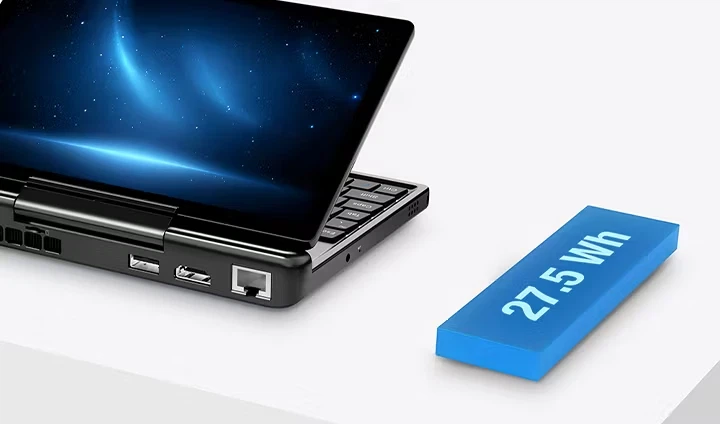

27.5 Wh |
| Battery Life |
Heavy usage: 2 hours; light usage: 8 hours, depending on the specific usage environment |
Appearance
| N.W. |
≈490g |
| Size(W x D x H) |
171.2mm × 110.8mm × 23.5mm |
| Shell Material |
Korean LG-DOW 121H impact-resistant aviation ABS synthetic resin, V-0 flame retardant |
| Shell Color |
Black |
| Thermal Design |
Active Cooling, Fan + Heat Pipe |
Accessories
| Package Specifications |
GPD MicroPC 2 × 1
45W PD Power Adapter（9V==3A，12V==3A，15V==3A，20V==2.25A）×1
Warranty Card ×1
Product Manual ×1 |
Data Description:
All products sold on this site support bypass power delivery, and some products offer battery threshold management in the BIOS settings.
* When using a Type-C adapter, power will primarily be supplied to the motherboard while also assisting in charging the battery. Under high load, if the adapter cannot meet the motherboard's power demand, the battery will assist in powering the motherboard. We do not recommend users keep the device charging for extended periods when idle to avoid overcharging the battery.
* Battery lifespan varies due to different factors, including product model, configuration, loaded applications, functionalities, usage conditions, wireless features, and power management settings. After a period of use, the battery's maximum capacity will decrease.
* Regarding memory and storage, the actual usable capacity may be reduced and vary due to several factors: some memory (LPDDR) is occupied by the operating system, resulting in actual available space being less than the labeled memory capacity; similarly, part of the storage (SSD) is occupied by the installed operating system and pre-installed programs, leading to actual available storage space being less than the labeled storage capacity.
* The screen images and product illustrations provided on this website are for reference only; the actual product shall prevail.
* Product images, models, data, features, performance, specifications, user interfaces, and other product information are for reference only. GPD may improve the aforementioned content; please refer to the actual product and user manual for specific information.
* Unless stated otherwise, all data on this site are based on our laboratory data, design technical parameters, and data provided by suppliers. Actual data may vary slightly due to differences in testing software versions, specific testing environments, and versions. All structural images displayed on the site are functional diagrams and not absolute representations of actual structures; the final product shall prevail.
* Major components include the motherboard, screen, LPDDR, SSD, keyboard, and power adapter, and care should be taken to avoid human damage.
