Basic Information
| Product Name |

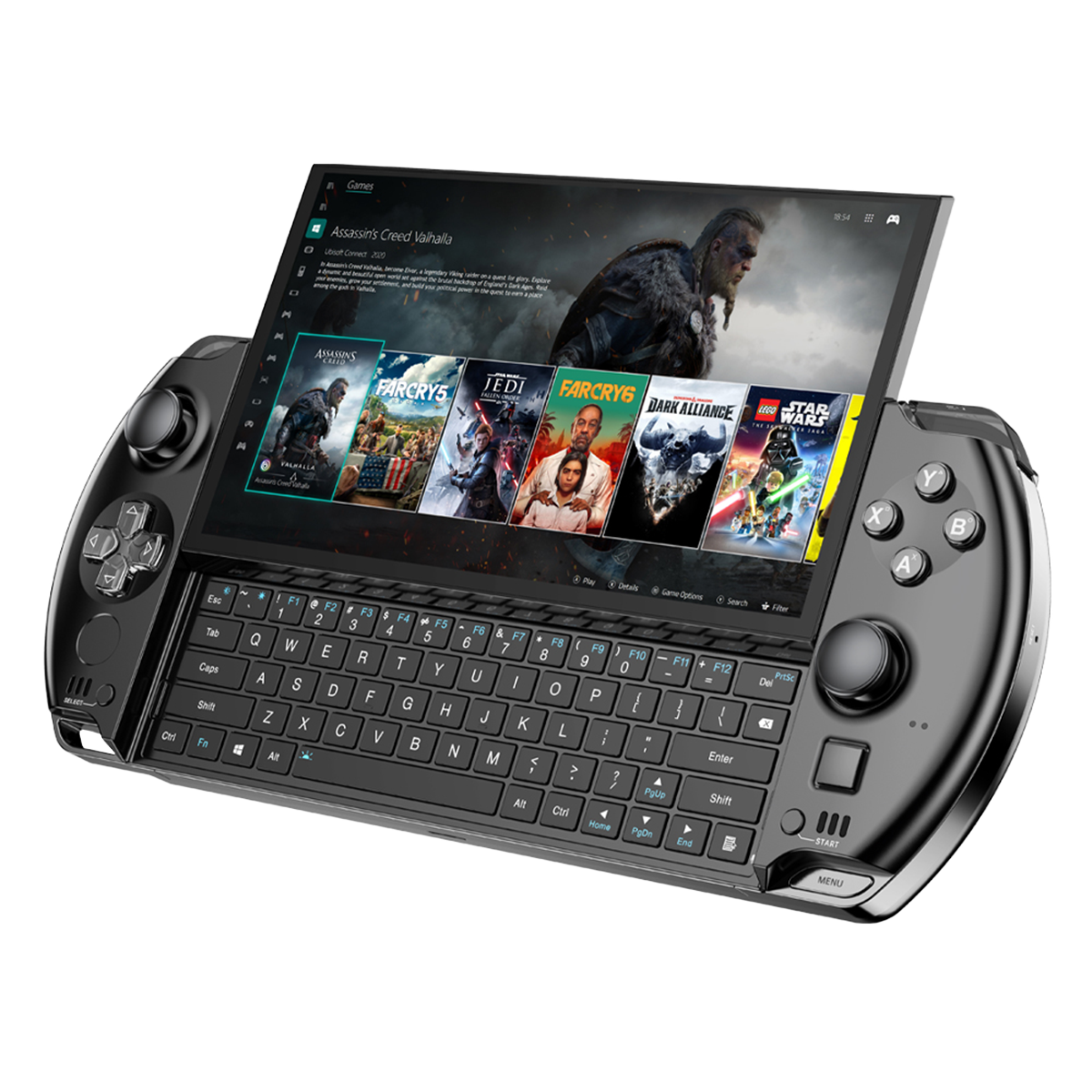

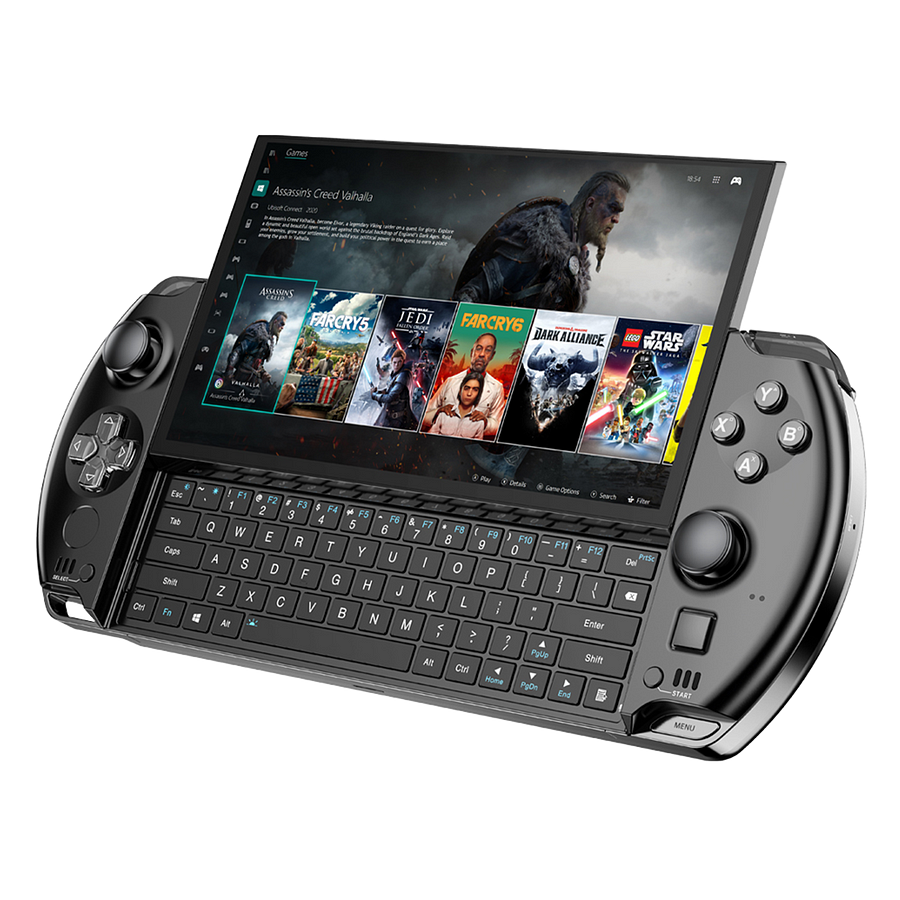

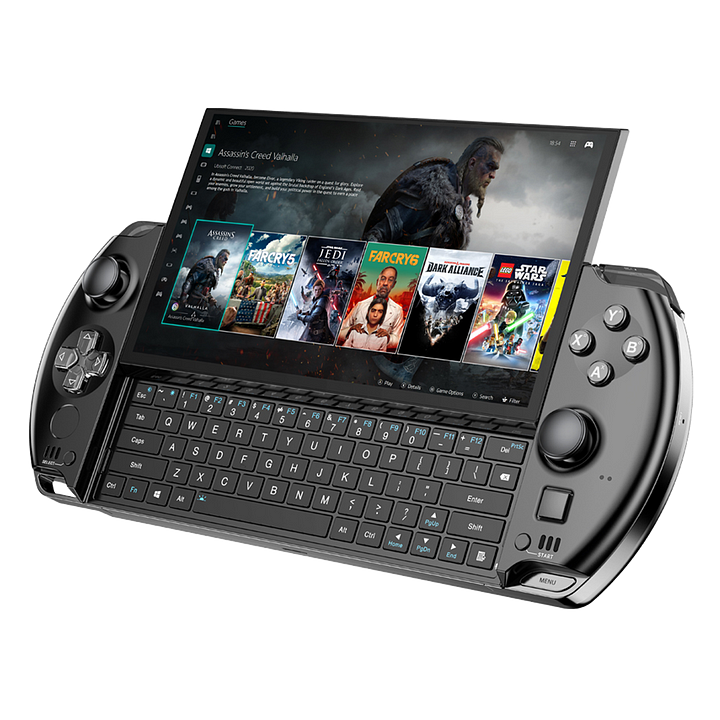

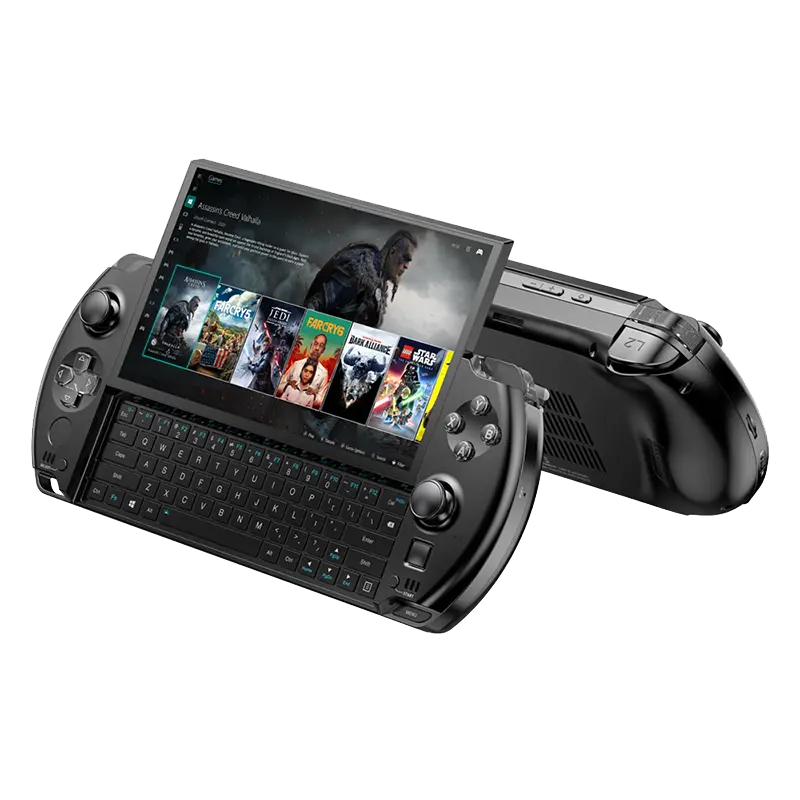

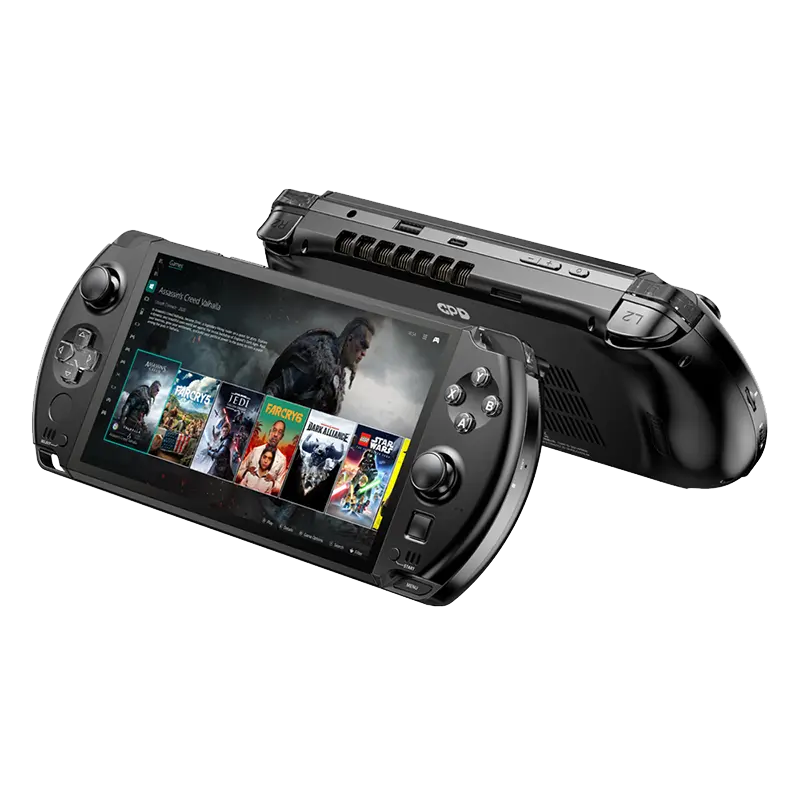

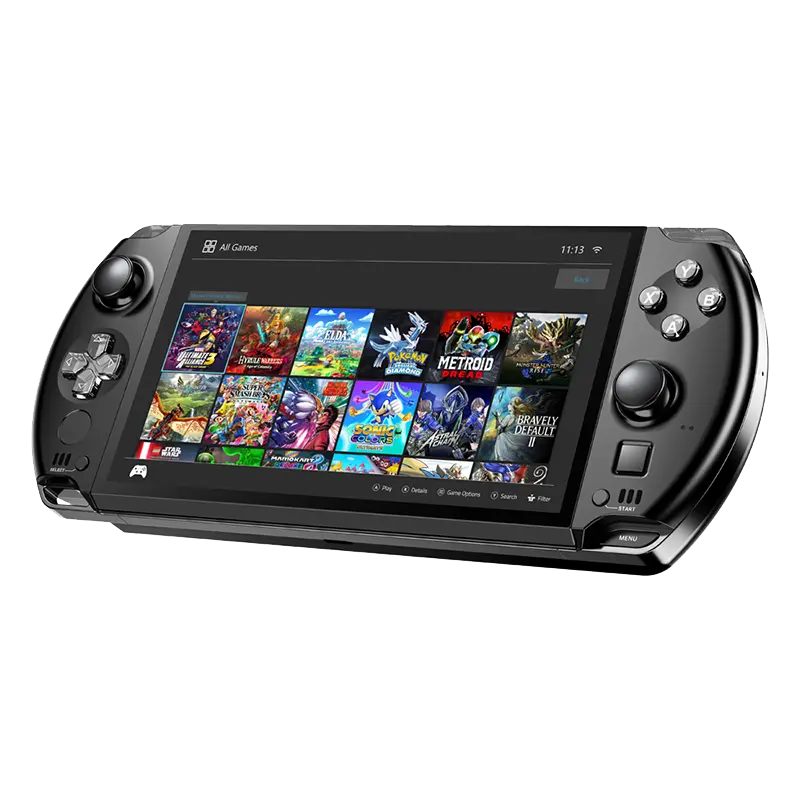

GPD WIN4 (2025) |
| Product Positioning |
Handheld Game Console |
| Operating System |
Pre-installed with Windows 11 Home 24H2 |
Display
| Touch Panel |
Supports |
| Screen Type |
Corning Gorilla Glass 5，H-IPS Technology |
| Screen Size |
6 Inches, Native Landscape Mode, DC Dimming |
| Aspect Ratio |
16：9 |
| Screen Resolution |
1920 × 1080, 1280 × 720, Image resolution: 40Hz & 60Hz |
| Pixels Per Inch |
368 PPI |
CPU
| Product model |
AMD Ryzen™ AI 9 HX 370 |
AMD Ryzen 7 8840U |
| Architecture |
Zen 5 + Zen 5C（Strix Point） |
Zen 4（Hawk Point） |
| # of CPU Cores / # of Threads |
12C / 24T |
8C / 16T |
| Base Clock |
2.0 GHz |
3.3 GHz |
| Max. Boost Clock |
5.1 GHz |
5.1 GHz |
| AI Performance |
50 TOPS |
16 TOPS |
| Total Processor Performance |
80 TOPS |
38 TOPS |
| Total Cache |
36.75 MB |
24.5 MB |
| Process Size |
4nm |
4nm |
| TDP |
15W-35W |
15W-35W |
GPU
| Processor Graphics |
AMD Radeon™ 890M |
AMD Radeon™ 780M |
| Graphics Frequency |
2900 MHz |
2700 MHz |
| Compute Units |
16 CU |
12CU |
| Shading Units |
1024 |
768 |
| Floating-point Performance |
23.76 TFLOPS（FP16）
11.88 TFLOPS（FP32）
742.4 GFLOPS（FP64） |
17.82 TFlops（FP16）
8.92 TFlops（FP32）
556.8 GFlops（FP64） |
| Pixel Rate |
92.80 GPixel/s |
92.80 GPixel/s |
| Texture Rate |
185.6 GTexel/s |
139.2 GTexel/s |
Storage
| Memory |
32GB |
32GB |
| Memory Types |
LPDDR5x 7500 MT/s |
LPDDR5x 7500 MT/s |
| Memory Channel |
Dual Channe |
Dual Channe |

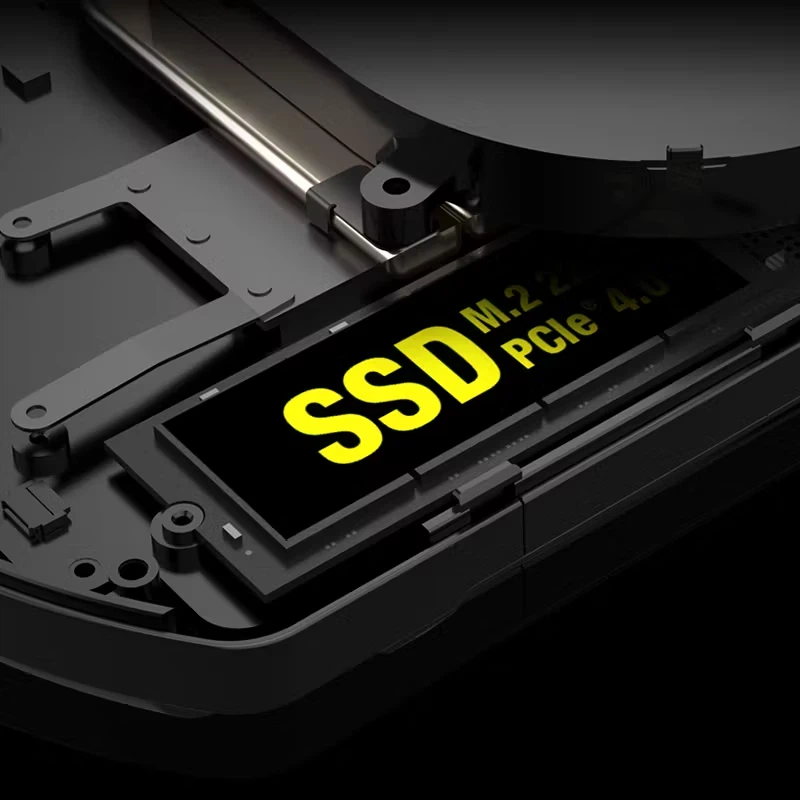

| Hard Disk Type |
M.2 SSD |
M.2 SSD |
| Hard Disk Port |
M.2（Socket 3）× 1 |
M.2（Socket 3）× 1 |
| Supported Specifications |
M.2 NVMe 2280 × 1 |
M.2 NVMe 2280 × 1 |
| Standard Capacity |
2TB × 1 |
1TB × 1 |
| Bus Specification |
PCIe 4.0 × 4 |
PCIe 4.0 × 4 |
Multimedia Support
| Audio System |
Built-in Sound Chip + Intelligent Amplifier That Features High Energy Efficiency, High PSRR and Low Noise |

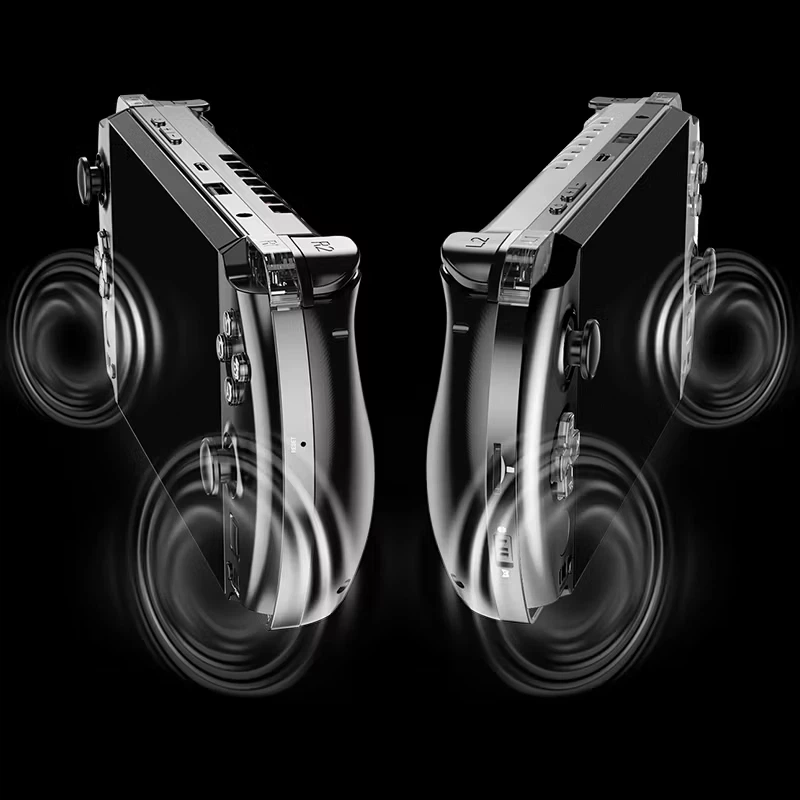

| Loudspeakers |
Built-in Dual Speakers |
| Microphone |
Built-in Microphone |
Network Communications

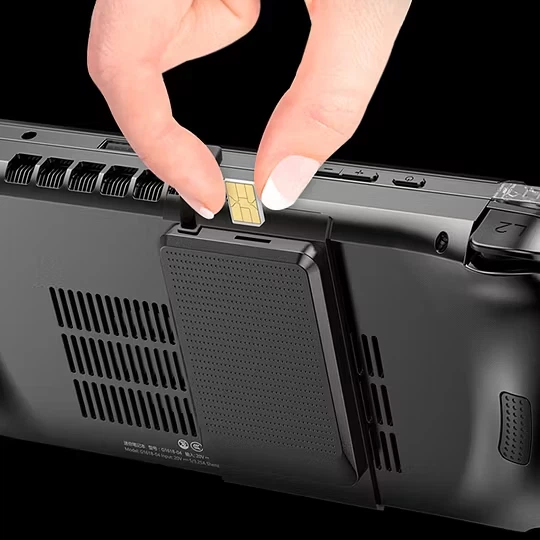

| 4G LTE Module |
Back-mount Module, Selectable
Type of SIM Card: Nano-SIM, Single
4G Network：TD-LTE，FDD-LTE
3G Network：WCDMA/TD-SCDMA/CDMA
2G Network：GSM
"Frequency Band：
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B9
GSM: B2/B3/B5/B8" |
| Wi-Fi |
Wi-Fi 6E(802.11ax) 2×2 |
| MU-MIMO |
Support |
| Bluetooth |
BT5.3 |
I/O Ports
| Video / Data / Charging |
USB4, 40Gbps (Full Speed) × 1
USB 3.2 Gen 2 Type-C Full-featured, 10Gbps × 1
USB 3.2 Gen 2 Type-C Charging Only (Provided By The Dock) × 1
Oculink (SFF-8612) female port with a bandwidth of 63Gbps and a throughput of up to 7.877GB/s × 1

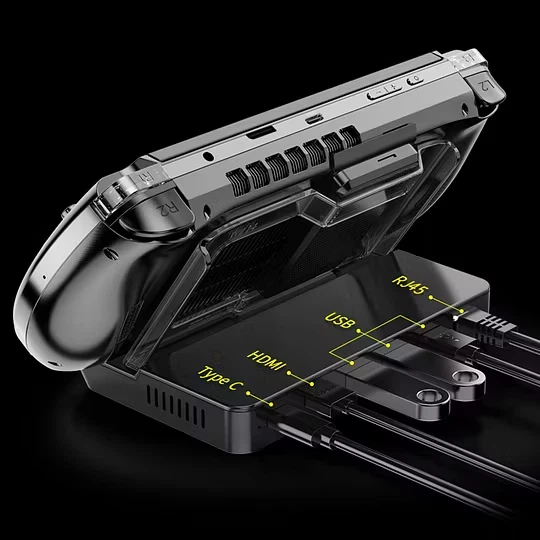

USB 3.2 Gen 2 Type-A, 10Gbps (Provided By The Dock) × 3
HDMI 2.0 (Provided By The Dock) × 1 |
| microSDXC Slot |
Bus Port: UHS-I
Speed Class: Class 10
Ultra High Speed: U3
Video Speed Class: V30
Application Performance Class: A2
Read/Write: 160MB/s, 90MB/s
Maximum Capacity: 2TB |
| Ethernet Ports |
RJ45 (Provided By The Dock) × 1 |
| Audio Port |
3.5mm Headphone/Microphone Combo Port, Compatible With Apple Headphones (US Specification) × 1 |
| BIOS Reset Port |
Supports |
I/O Device
| Keyboard |

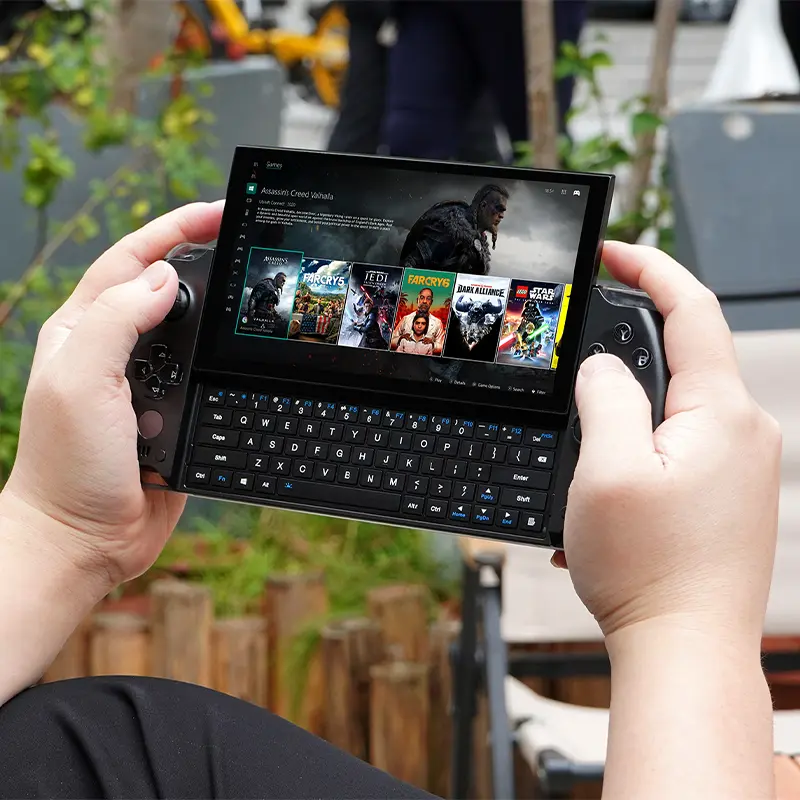

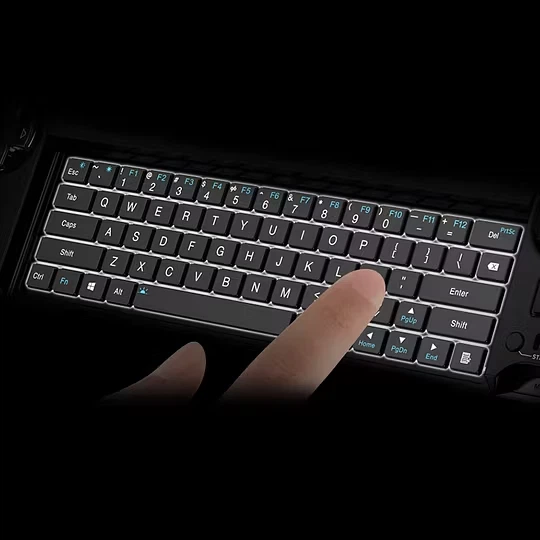

QWERTY Full Keyboard Design, Scissor-Switch Keys, White Backlight, And Combination Keys For On/Off Function |
| Mouse |
Mouse 1: Right Joystick Simulates Mouse, Requires Switching Between "Gamepad/Mouse" Mode
Mouse 2: Optical Finger Mouse With Support For Click Confirmation Via Pressure |
| Fingerprint Recognition |
Yes |
| Joystick |
ALPS OEM Dual 3D Joysticks With Native Support For L3/R3 Via Downward Press |
| D-Pad |
Siamese Cross Key |
| Game Function Buttons |
ABXY、△○×□ Double Character Print, Select, Start, Xbox Controller Home |
| Game Accessories Buttons |
L1/R1 Feature Rainbow Lighting Design, While L2/R2 Are Linear Analog Buttons |
| Handle Vibration |
Dual Vibration Motors, Software Controlled, Capable Of: Turning Off, Weak Vibration, Strong Vibration |
| Dorsal Key |
Two Back Buttons, Mappable And Programmable |
| Other Keys |
Volume +/- Buttons, Power Button, Gamepad/Mouse Mode Switch |
| Sensor |
6-axis Design: 3-axis G-sensor, 3-axis Gyro |
| Speaker |
2 Pcs |
| Indicator Lamp |
Charging Indicator, Running Indicator |
Battery
| Battery Type |
Li-polymer |
| Battery Capacity |
45.62Wh |
| Battery Life |
2 Hours Of Heavy Use, 3-6 Hours Of Moderate Use, 10 Hours Of Light Use, Depending On The Specific Environment Of Use |
Appearance
| Net Weight |
598g |
| Length |
220×92×28mm |
| Shell Material |
LG-DOW 121H Aviation ABS, UL94-V0, Magnesium Alloy |
| Shell Color |
Black |
| Thermal Design |
Active Thermal Dissipation, Large Fan, Double Thick-walled Heat Pipes |
Accessories
| GPD WIN 4 (2025) × 1 |
| 65W Power Adapter (20V==3.25A, 15V==3A) × 1 |
| Warranty Card × 1 |
| Product Manual × 1 |
Data description:
The memory capacity and USB port transfer rate on this page are all theoretical values, while the dimensions, thickness, weight, screen opening and closing angles, and other data are all theoretical design values. There may be reasonable errors in actual measurements. Unless otherwise specified, all data comes from our company's laboratory. Due to real-time changes such as software upgrades, the pre-installed software version, port, and name may vary slightly depending on the product batch. Please refer to the actual usage situation.
* Supports C port adapter (65W and above) with 20V output level. When using a C port adapter, the motherboard is powered first when the computer is turned on. After meeting the power supply requirements, the battery will slowly charge and assist in providing power to the motherboard.
* Battery life varies due to different factors, including product model, configuration, loaded applications, functions, usage, wireless capabilities, and power management settings. After a period of use, the maximum capacity of the battery will decrease.
* The main components include the motherboard, screen, memory, hard drive, keyboard, and power adapter.
