2024 GPD G1 Graphics Card Expansion AMD Radeon RX 7600M XT USB4 Supports AMD FSR 3.0 Technology / AV1 Encoding

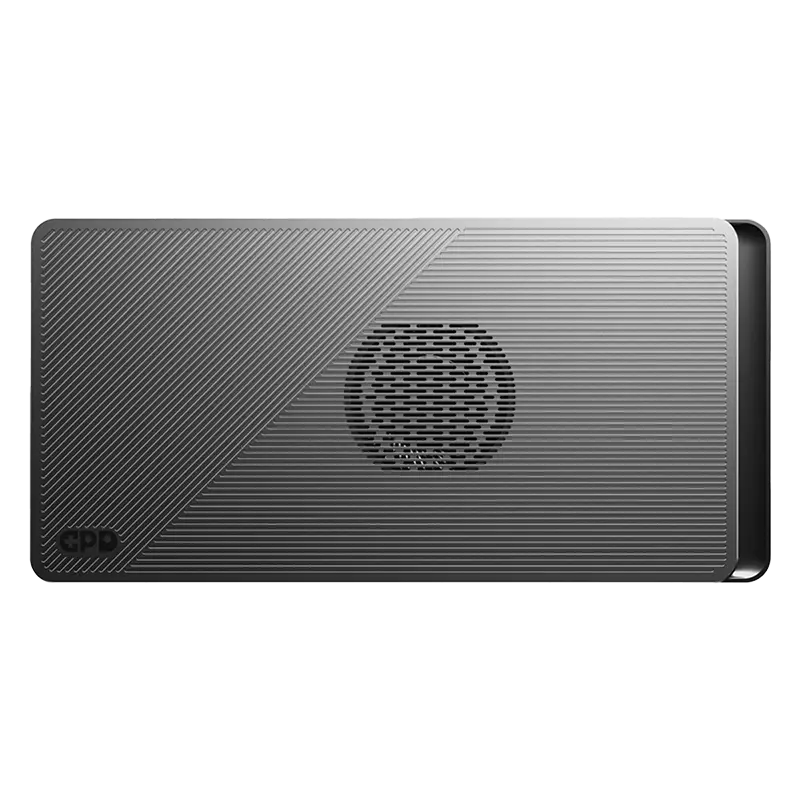

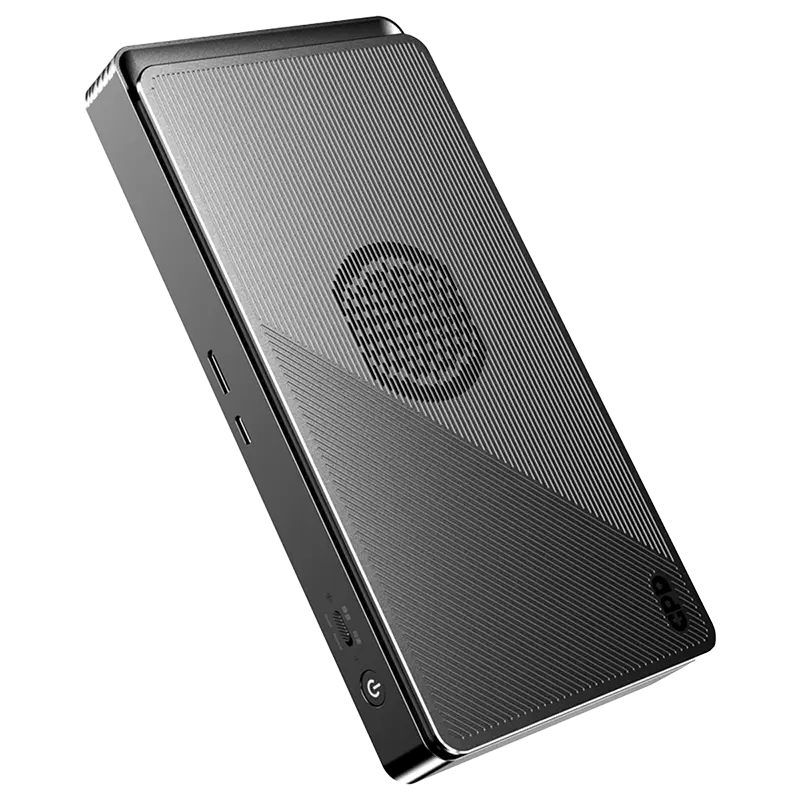

GPD G1 Graphics Card Expansion

$749.00

  • AMD Radeon RX 7600M XT Graphics

  • Oculink Interface

  • USB4 Interface

  • Supports AMD FSR 3.0 Technology/AV1 Encoding
    • Plug:  US
    Quantity
    SKU : GPD-G1-US

    Description

    * AMD SmartShift MAX is an enhanced version of AMD SmartShift technology that optimizes a wider range of games. This technology is only supported on AMD processors and dynamically allocates power between AMD Ryzen mobile processors and AMD Radeon graphics cards to deliver up to twice the average gaming performance in specific games on laptops.

    Why Do We Need To Launch Such A Product?

    We hope to deepen our presence in the field of portable devices and make some achievements to give back to our users. Until now, our products have been based on integrated graphics, but the performance of integrated graphics is ultimately not as good as discrete graphics. We are well aware of the pain points of our products, and one of the reasons why many gamers ultimately choose not to buy is their doubts about the performance of integrated graphics. Therefore, we want to fully develop a portable graphics card that can assist our handheld console and handheld computer. The GPD G1 is such a product, combining performance, multifunctional expansion, and portability all in one!

    The Features Of GPD G1 Are:

    • GPD G1 is the world's smallest mobile graphics card expansion dock, with dimensions of 225 x 111 x 29.8 mm, which is only the size of the GPD WIN 4.
    • It features a built-in AMD Radeon RX 7600M XT mobile discrete graphics card with the latest RDNA3 architecture, 8GB of GDDR6 memory, a TGP power of 60~100W, and gaming performance surpassing that of the desktop RTX 3070.
    • It also features an axial fan, dynamic temperature control design, with high airflow and low noise.
    • "It has a built-in ultra-compact gallium nitride PC power supply that provides 240W power to meet the power supply needs of the built-in graphics card and external device interfaces.
    • The unique Oculink interface on the body meets the needs of users to improve their gaming and office experience by purchasing GPD products and using the GPD G1 graphics card expansion dock.
    • It is compatible with Thunderbolt 4 interface and can be connected to any device that supports Thunderbolt 3/Thunderbolt 4/USB4 to expand more peripherals while improving gaming experience with the GPD G1 graphics card expansion dock.
    • By connecting to both ports simultaneously, it can maximize graphics card performance while expanding more peripherals.
    • If your ITX mini PC lacks powerful graphics card support, don't worry! With just one adapter card, the GPD G1 can empower your ITX mini PC, creating the smallest yet most powerful gaming desktop.
    • With the GPD G1, you can forget about carrying a separate charger. It can charge any device with a Type-C interface and support for PD fast charging protocol via the USB4 interface, with a maximum output of 65W.

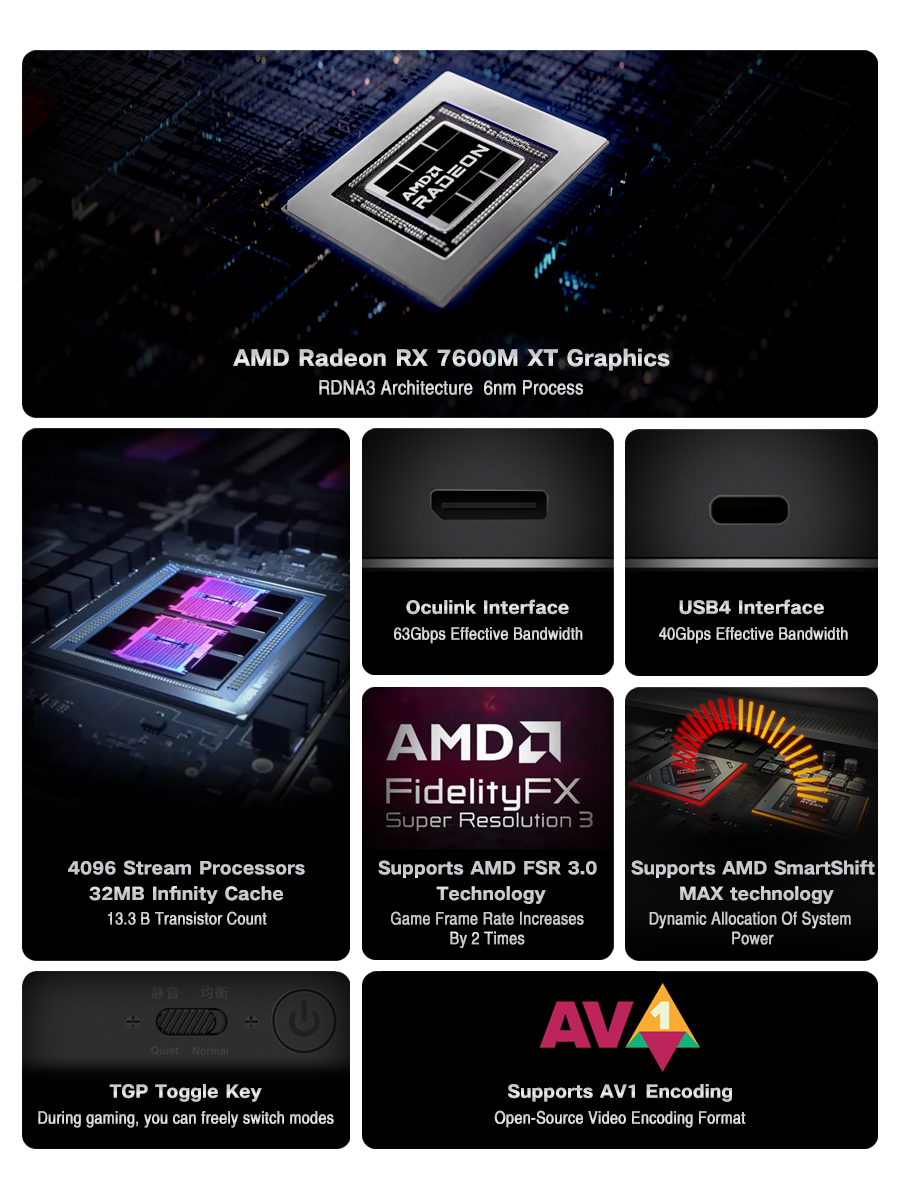

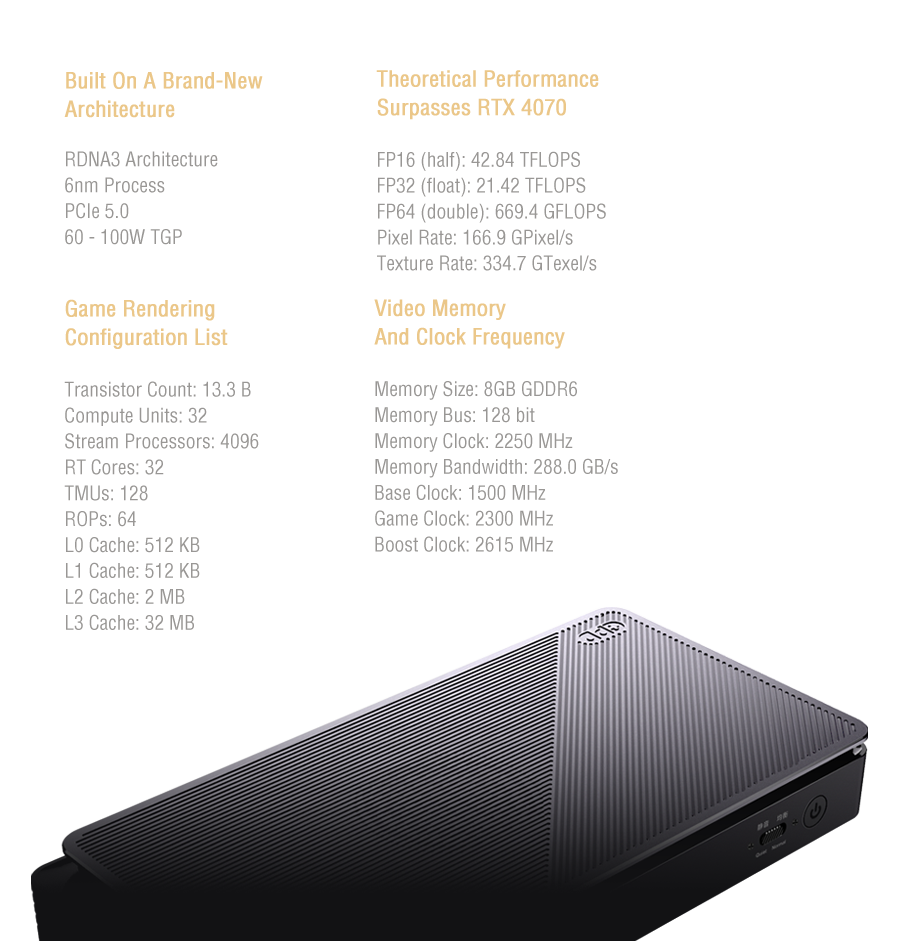

    The Latest RDNA3 Architecture Mobile Discrete Graphics Card Delivers Top-Level Gaming Experience

    * The total size of L0 cache is 32KB x 16 WGP.
    * The total size of L1 cache is 128KB x 4 Shader Arrays.
    * The number of shaders is listed as 2048 on the AMD official website, but it actually refers to 2048 shader units, with each unit containing 2 sets of shaders, resulting in a total of 4096 shaders.

    Based On 3DMark Scores, The Overall Performance Surpasses That Of The NVIDIA GeForce RTX 4060 (Mobile)

    In 3DMark benchmark tests, the GPD G1 achieves a higher Time Spy graphics score than the NVIDIA GeForce RTX 4060 (Mobile), and a higher Fire Strike graphics score than the NVIDIA GeForce RTX 4070 (Desktop)

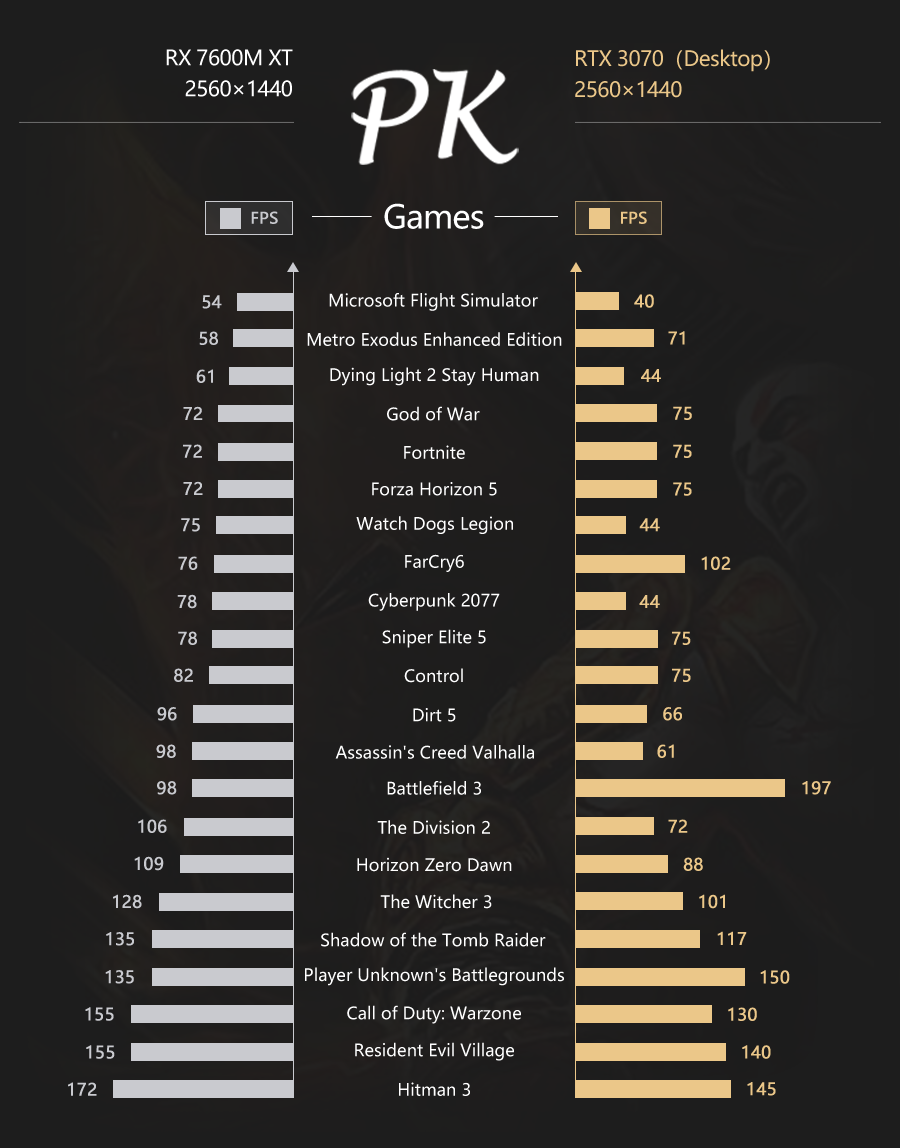

    Actual Game Frame Rate Tests Show That It Surpasses The NVIDIA GeForce RTX 3070 (Desktop)

    The desktop configuration consists of Ryzen 5 5600X and RTX 3070, while the mobile configuration consists of Ryzen 7 7840U and RX 7600M XT. All games tested had ray tracing, DLSS, and FSR disabled.

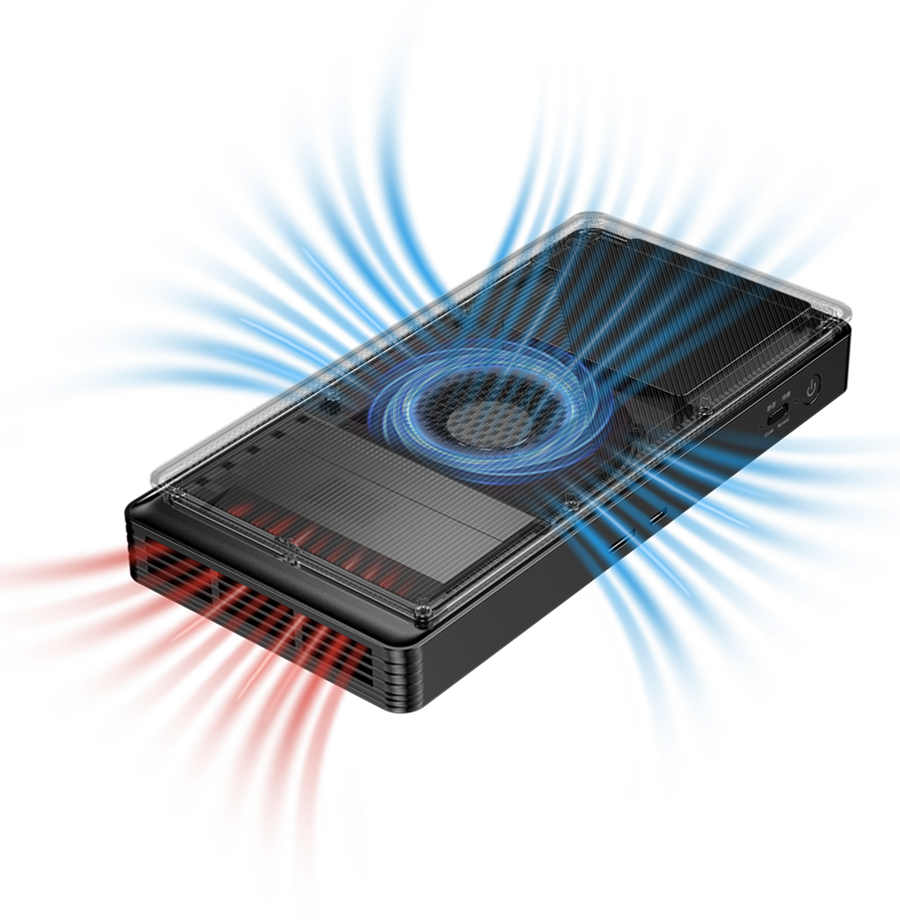

    It Also Features An Axial Fan, Dynamic Temperature Control Design, With High Airflow And Low Noise

    The axial fan rotates smoothly without stuttering or delay, and the intelligent temperature control design achieves lower temperatures and noise. The hidden three-in-one air duct reduces internal air turbulence and improves air flow.

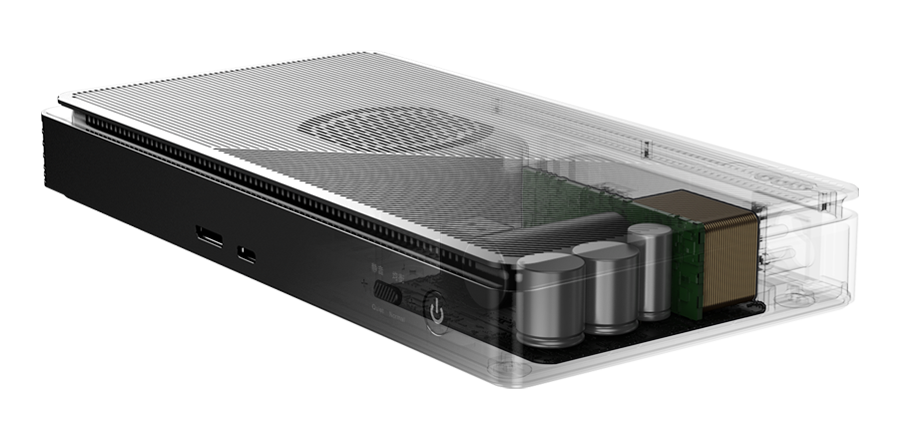

    The Gallium Nitride PC Power Supply Provides Stable And High-Wattage Power Supply Design

    It has a built-in ultra-compact gallium nitride PC power supply with PFC + LLC architecture, operates with zero noise, and provides 240W power supply design with a full load efficiency of up to 94%, fully meeting the power supply needs of the graphics card and external device interfaces.

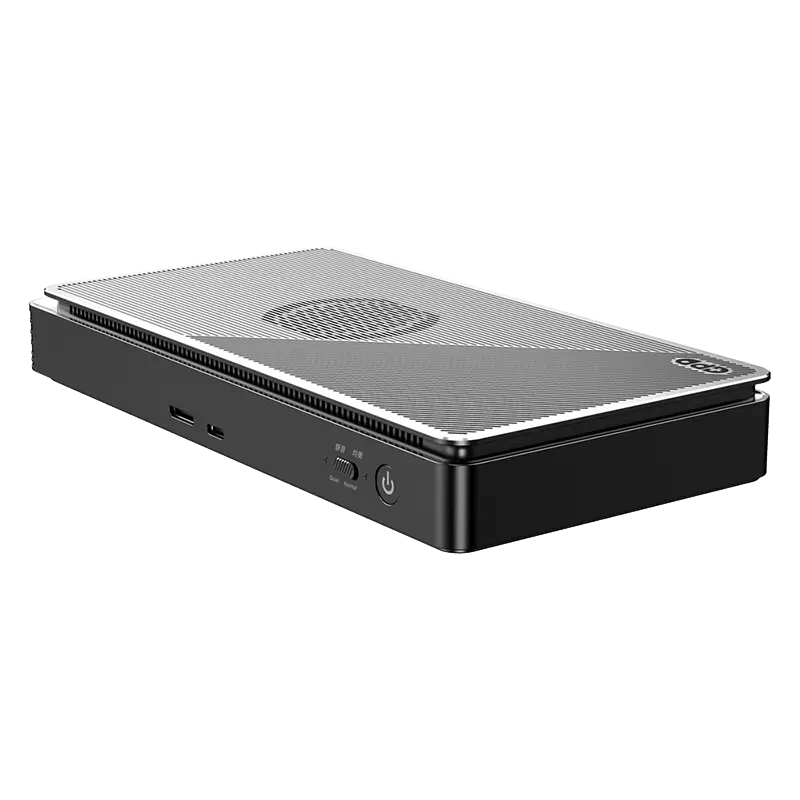

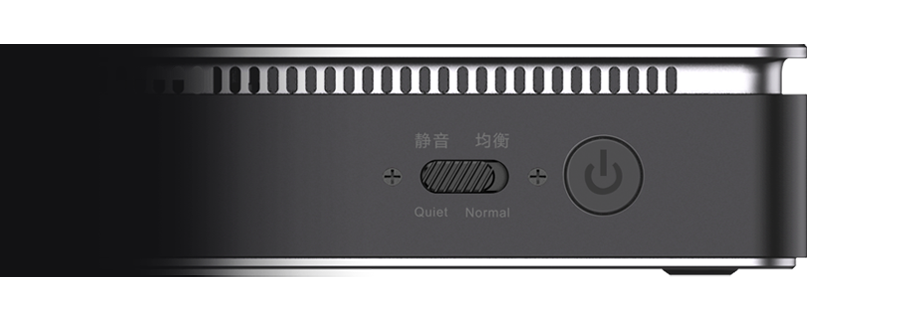

    Exclusive "TGP Toggle Key", during gaming, you can freely switch between silent and performance modes

    When switching to "Quiet Mode", the TGP is set to 60W, ensuring that G1 operates at an ultra-low noise level. When switching to "Normal Mode", the TGP is set to 100W, which may result in some noise, but the graphics card performance is significantly enhanced. Both modes can be freely switched during system operation or gaming without the need to restart the system.

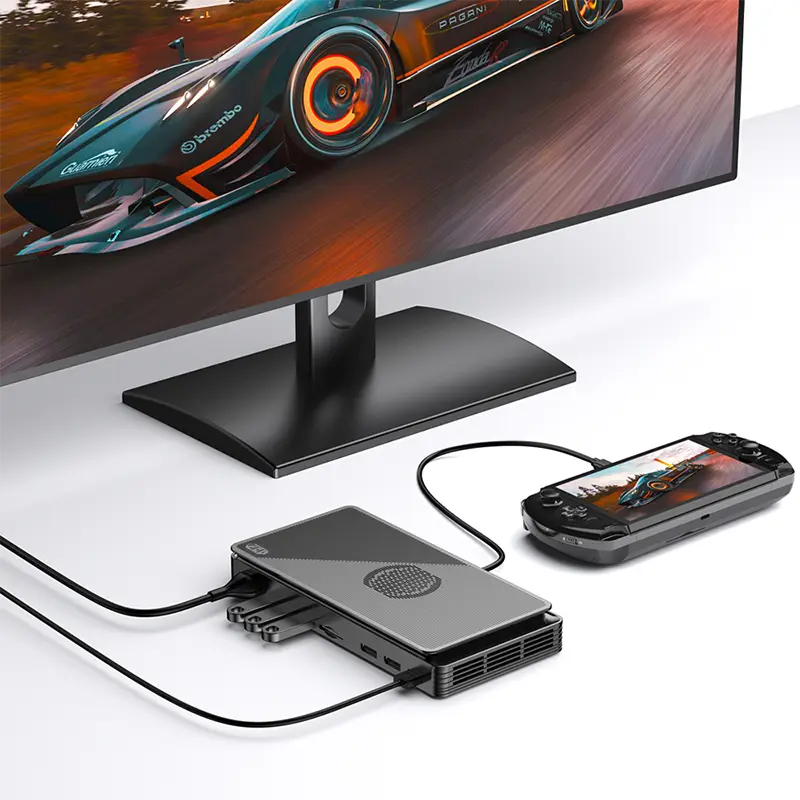

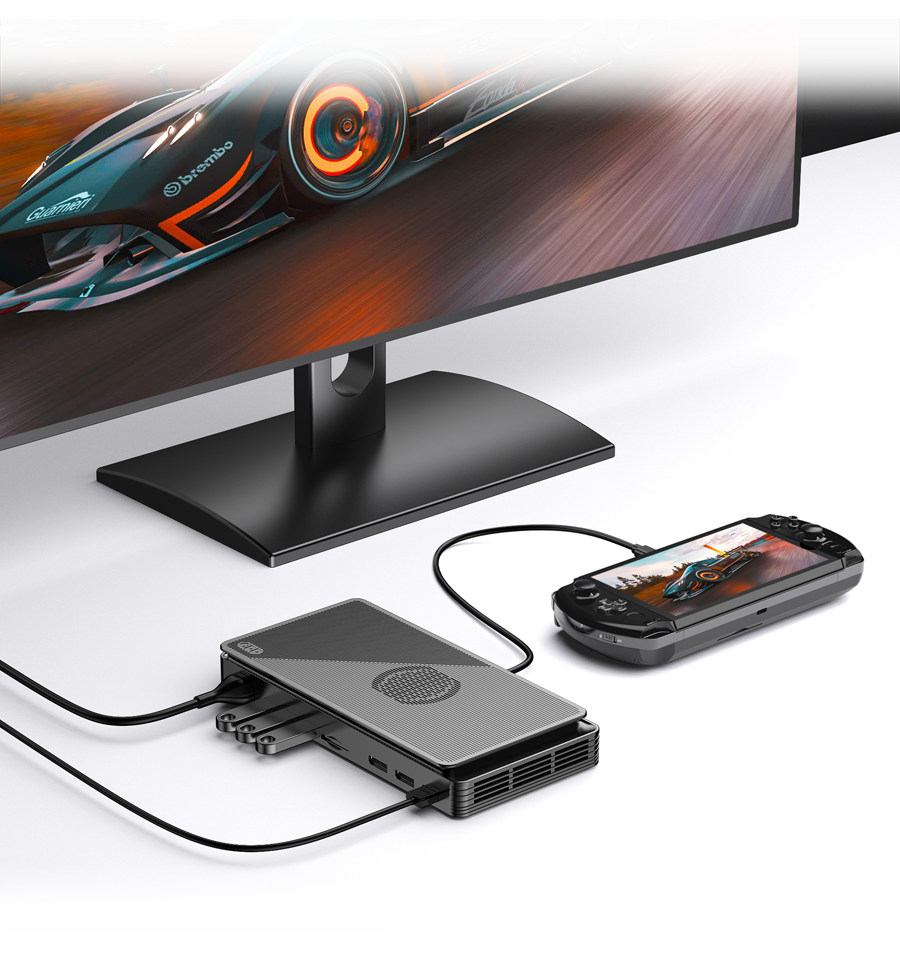

    GPD Handheld Devices Can Also Have A Discrete Graphics Card By Simply Connecting To The GPD G1 Through The Oculink Interface

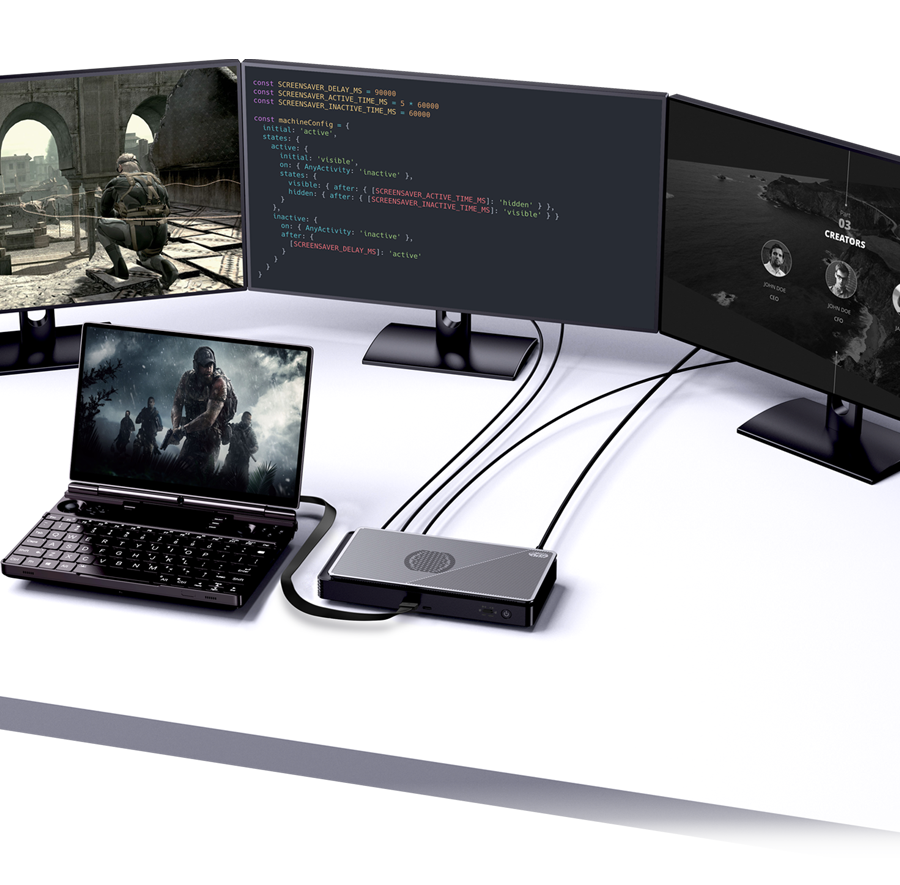

    The unique Oculink interface of GPD G1 provides an effective bandwidth of 63Gbps, allowing for discrete graphics expansion for GPD products including the WIN Max 2 2023, providing users with the best gaming and office experience! When connected with an Oculink cable, the DP and HDMI interfaces of GPD G1 can simultaneously connect to 3 external displays.

    * The Oculink interface only provides PCIe direct connection for the GPD G1 graphics card dock and does not provide data channels for USB A and SD card reader.

    Even If Your Device Doesn't Have An Oculink Interface, You Can Still Use The GPD G1 As Long As It Has A Thunderbolt 3 / Thunderbolt 4 / USB4 Interface

    The GPD G1 also supports connecting to any device that supports Thunderbolt 3/4 or USB4 through its USB4 interface. With this connection, the G1 can not only connect to three displays but also activate the USB A and SD card reader, expanding the range of peripherals and improving the gaming experience.

    * GPD products that support Thunderbolt 3/4 or USB4 include the WIN 3, Pocket 3, WIN Max, WIN Max 2021, WIN Max 2, WIN 4, as well as other third-party products such as the Microsoft Surface Pro 8.

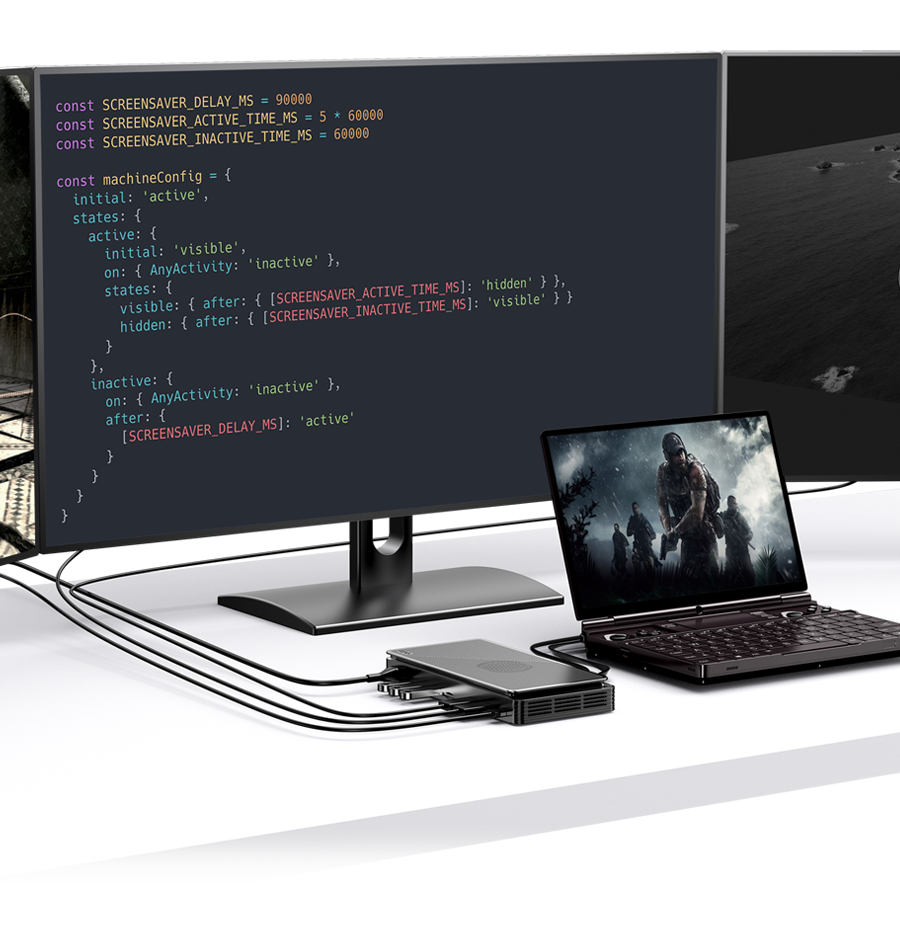

    To Achieve The Best Performance Of The GPD G1, It Is Recommended To Connect Both The Oculink And USB4 Ports To The Host Device Simultaneously

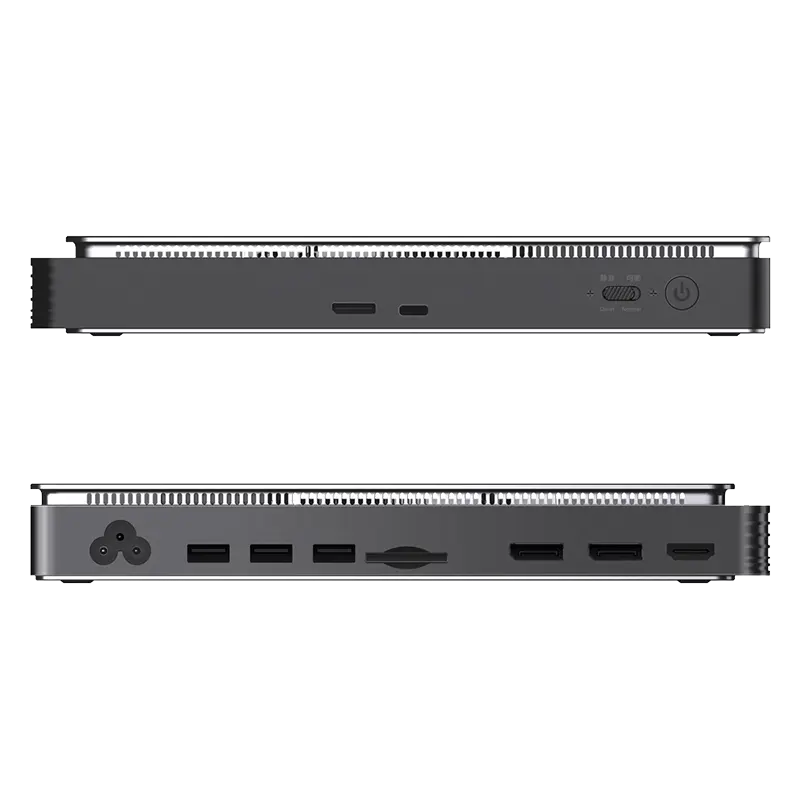

    To achieve the best performance of the GPD G1, it is recommended to connect both the Oculink and USB4 ports to the host device simultaneously. Oculink and USB4 each use independent PCIe channels, with Oculink responsible for graphics card and 3 video output interfaces, and USB4 responsible for the data transfer of USB A and SD card reader.

    By Placing It Upright, More Space Is Freed Up, Allowing You To Make The Most Of Your Indoor Space

    Your desktop space is limited, but the GPD G1 can be placed vertically with the air inlet facing upwards and the hot air outlet on top. The bottom is equipped with a gallium nitride power supply, ensuring stability and minimizing the risk of tipping over. By utilizing every inch of space, it optimizes your workspace.

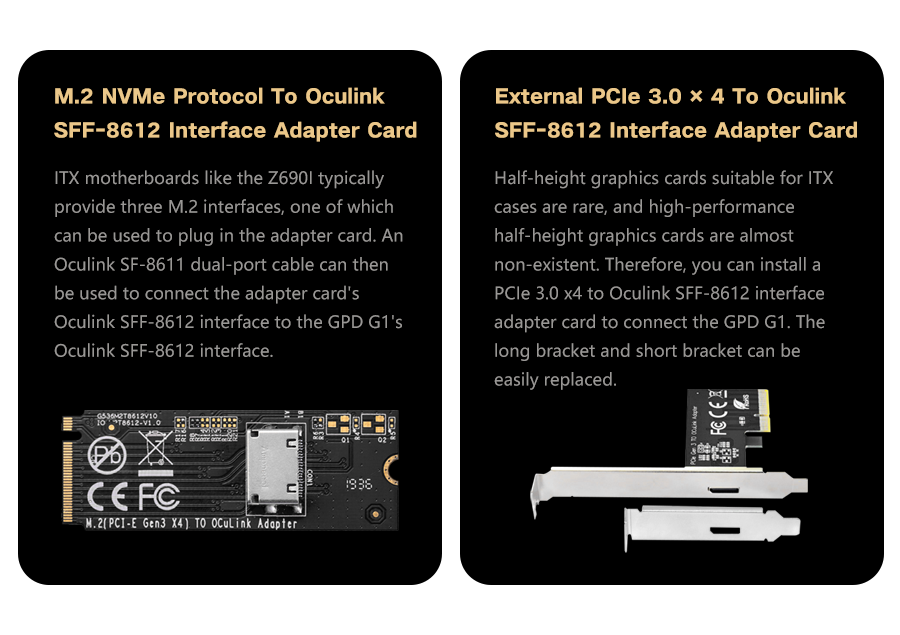

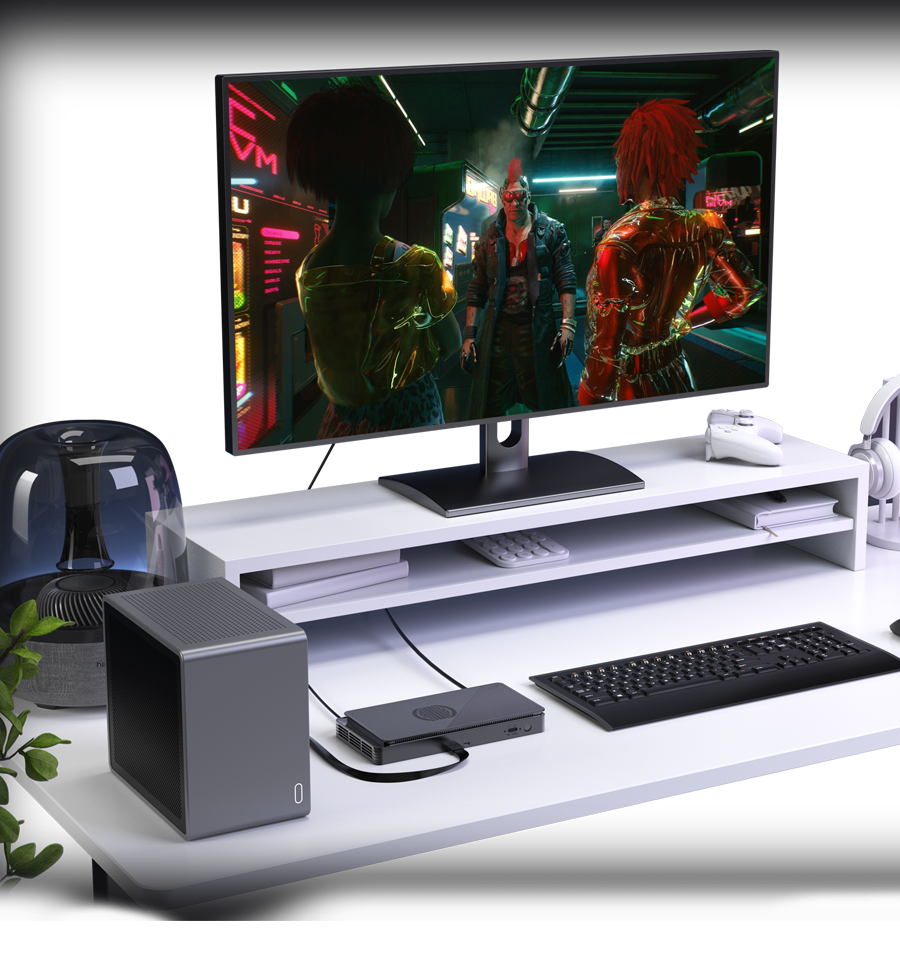

    If Your ITX Mini PC Doesn't Have A Suitable High-Performance Graphics Card, All You Need Is An Adapter Card To Empower Your Mini PC With The G1

    If you have an ITX mini PC at home but don't have a suitable discrete graphics card, and can only use integrated graphics, don't worry. All you need is an M.2 or PCIe adapter card, and the GPD G1 can empower your ITX mini PC, creating the smallest but most powerful gaming desktop.

    * Scenario Description: The ITX chassis used is Sparrow-MQ6, with the MSI MEG Z690I UNIFY motherboard. The motherboard is connected to an external Oculink SFF-8612 to PCI-E 3.0 x4 adapter card via PCIe, and the GPD G1 is connected to the adapter card using an Oculink SF-8611 dual-port cable.

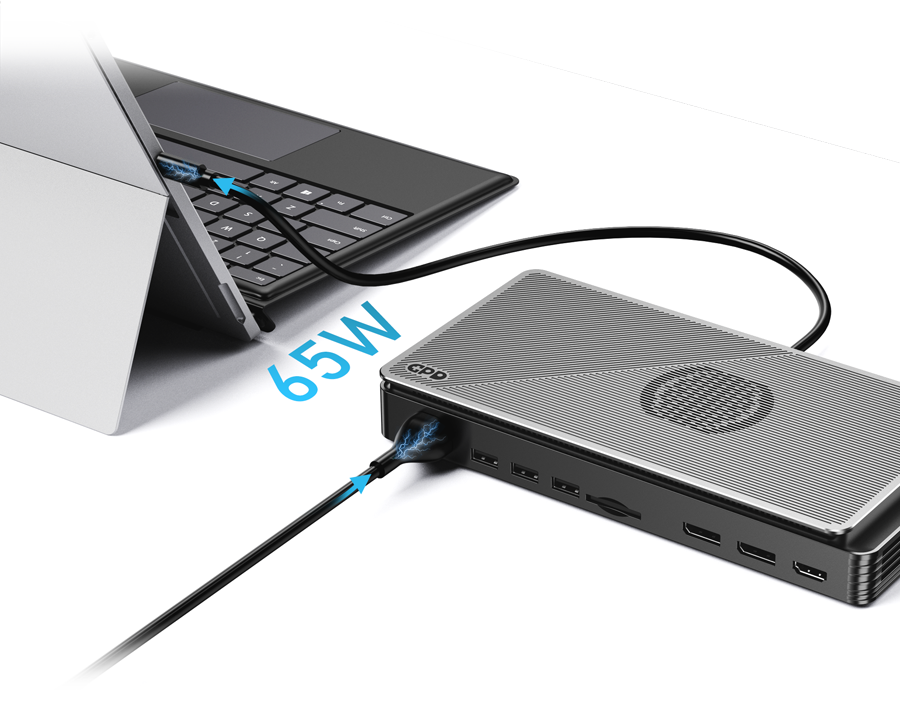

    The GPD G1 Supports 65W Charging As Long As Your Device Supports The PD Fast Charging Protocol

    With the GPD G1, you can say goodbye to your charger! As long as your device has a Type-C interface and supports the PD fast charging protocol, you can use the USB4 port of the GPD G1 to charge your device with up to 65W.
