The GPD WIN Max series has always been different from a typical gaming handheld. Instead of focusing only on controller-style gaming, it combines a compact laptop body, built-in gaming controls, a physical keyboard, and strong portable performance.

With the GPD WIN Max 3, that idea becomes more modular and more performance-focused. Based on currently available product information, this is not simply a faster version of the WIN Max 2. It introduces a removable battery system, modular cooling support, a 9.06-inch AMOLED display, and the new AMD Ryzen AI Max+ platform.

If you followed our earlier GPD WIN Max 3 preview, this new breakdown takes a closer look at the design and feature details now available.

A New Shape for the WIN Max Series

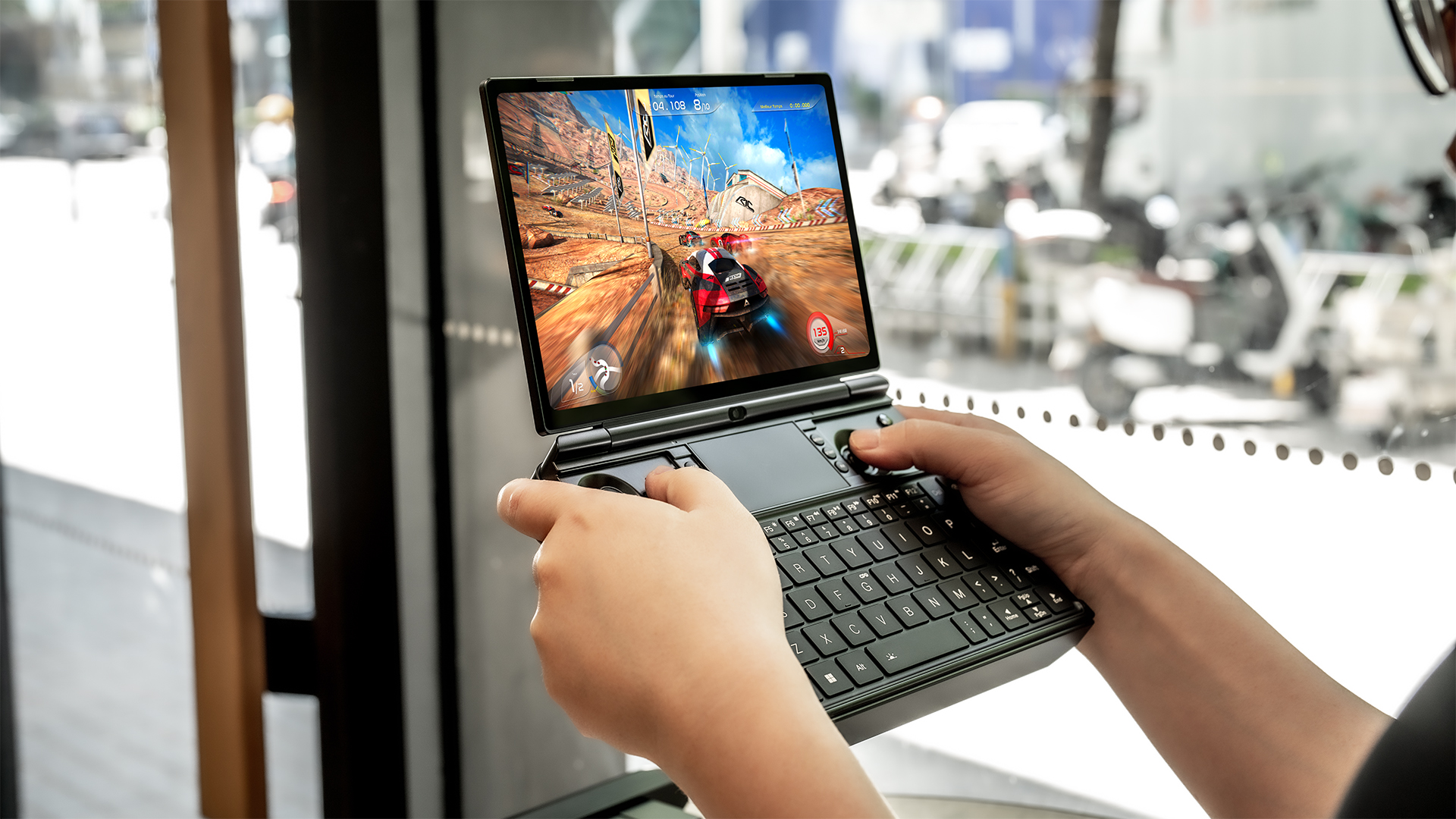

The GPD WIN Max 3 keeps the familiar clamshell design, which makes it feel closer to a mini laptop than a pure handheld console. However, its body has been redesigned around modular use.

Without the external modules, the device measures about 207 × 147 × 34mm and weighs around 815g. With the battery module attached, the depth increases to about 180mm, and the total weight reaches around 1220g.

That added size is mainly related to the removable front battery module and the more modular structure. Instead of treating the battery as only a hidden internal part, GPD uses the module as part of the physical design, helping the device work better as both a handheld gaming machine and a compact productivity laptop.

Removable 97Wh Battery: More Than Extra Runtime

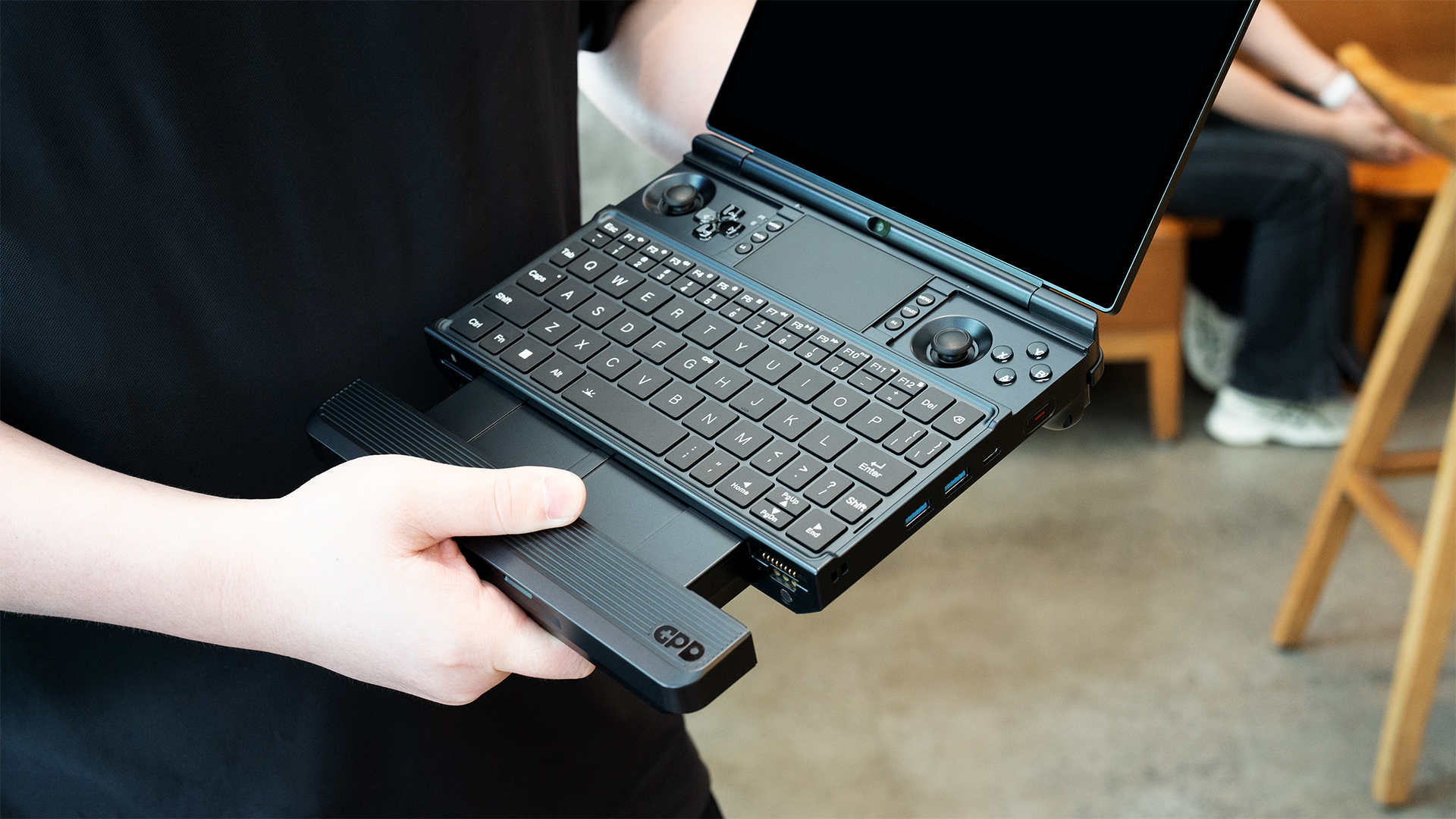

One of the biggest changes on the GPD WIN Max 3 is the removable 97Wh magnetic battery module. It attaches to the front of the device and is designed to support longer unplugged sessions for gaming, travel, and work.

The removable magnetic battery module allows users to attach or detach the unit based on their portability and runtime needs. Without the module, the device can stay closer to its lighter base form. With the module attached, users get a larger external power source for longer sessions.

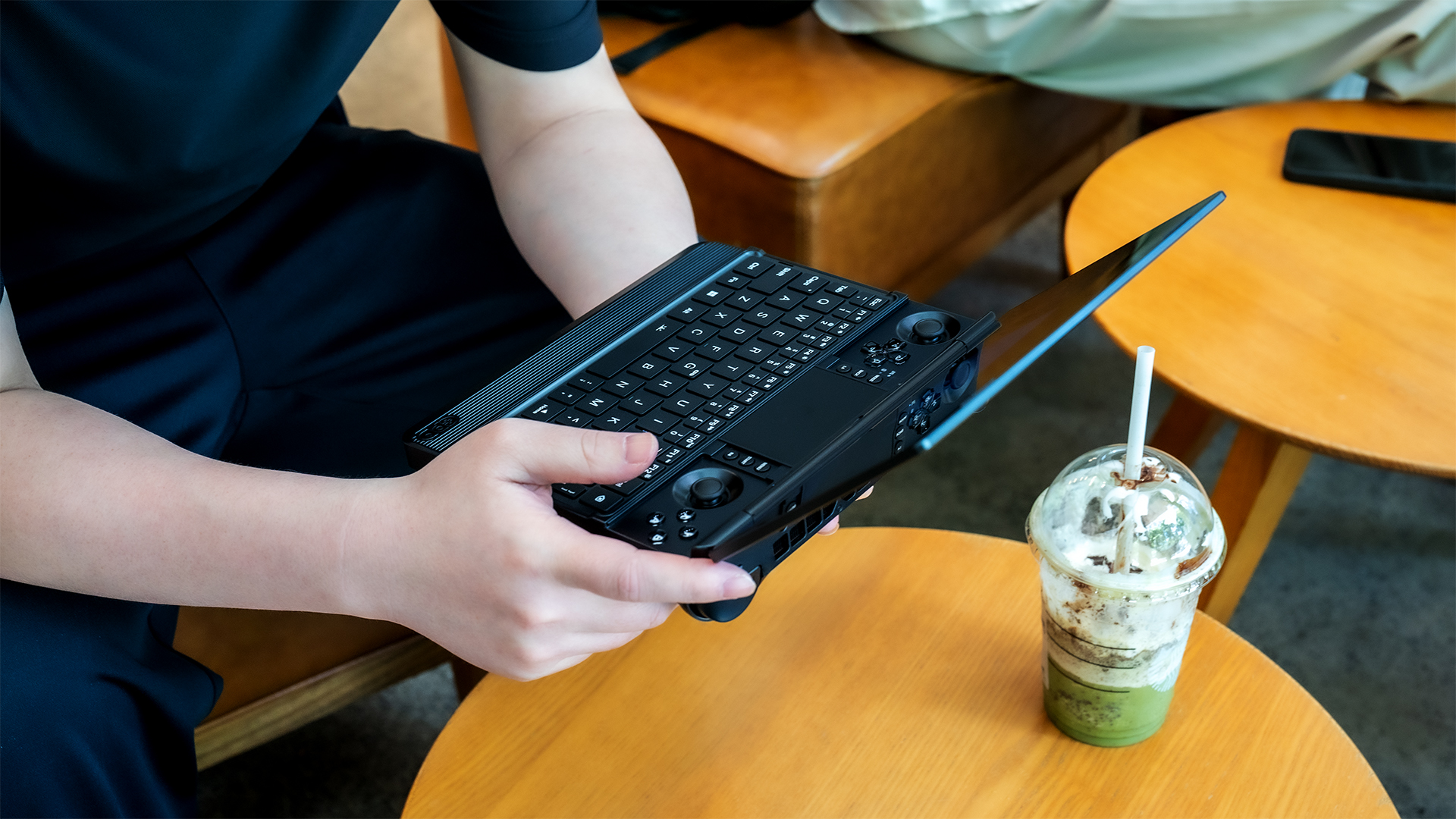

Ergonomically, the front-mounted battery module may also function like a palm rest during typing or desktop-style use. When typing, browsing, or working on documents, the front module may give users a more supported hand position compared with a flatter handheld-only layout.

The 97Wh capacity is also designed to stay under the common 100Wh airline battery threshold, though travelers should always check specific airline and regional rules before flying.

Optional Cooling Module for Higher Performance Headroom

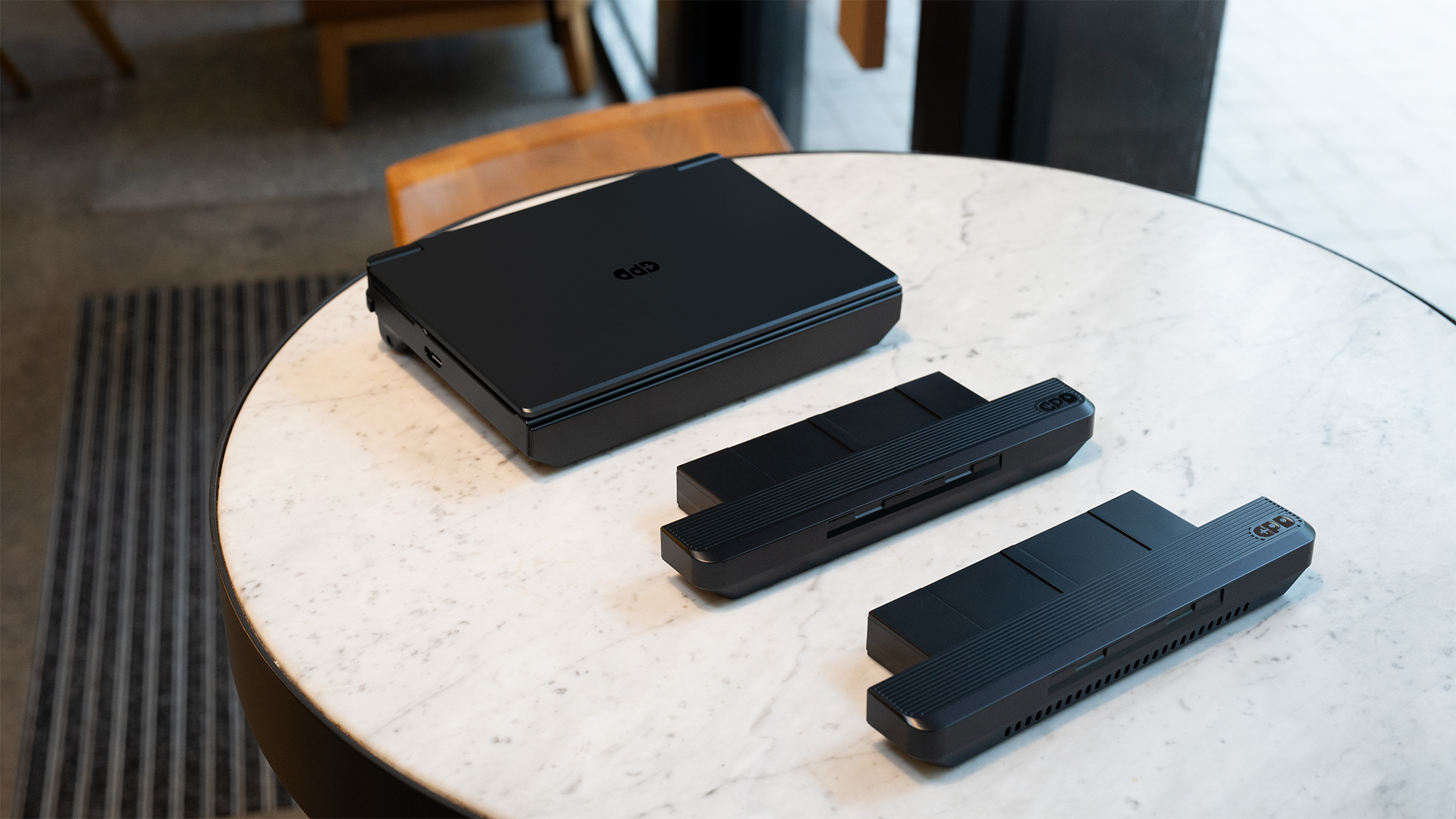

The GPD WIN Max 3 also takes a modular approach to cooling. Inside the device, GPD uses a compact high-performance thermal structure, while an optional external cooling module can be attached for heavier use.

According to available product materials, the optional external cooling module is designed to provide additional thermal headroom for higher-performance use. The listed TDP range reaches up to 110W, though real-world sustained performance will depend on configuration, cooling conditions, power mode, and final hardware behavior.

This matters because compact handheld PCs often face a difficult balance between performance, heat, and noise. By making cooling more modular, the WIN Max 3 gives users more flexibility. You can keep the device lighter for travel or casual use, then attach additional cooling when you want more headroom for demanding games, plugged-in sessions, or heavier workloads.

9.06-inch 165Hz AMOLED Display

The display is another major upgrade. The GPD WIN Max 3 features a 9.06-inch AMOLED screen with a 2400 × 1504 resolution and up to 165Hz refresh rate.

For gaming, the higher refresh rate can make fast movement feel smoother. For everyday use, the high resolution and AMOLED contrast help text, icons, videos, and creative content look sharper and more vivid. The screen also supports HDR10, offers up to 1050 nits peak HBM brightness, and uses a Real RGB layout with 313 PPI.

The display supports 10-point touch input and active stylus use, giving the WIN Max 3 more flexibility for browsing, note-taking, quick edits, and productivity tasks.

Performance Platform at a Glance

While this article focuses on the overall design, the performance platform is still a major part of the story.

The GPD WIN Max 3 is built around AMD Ryzen AI Max+ processor options, including the Ryzen AI Max+ 395 and Ryzen AI Max+ 388. It also features Radeon 8060S integrated graphics, up to 128GB LPDDR5x 8000 MT/s memory, M.2 2280 and M.2 2230 SSD support, plus microSD Express expansion.

For users who care about docking and external setups, the WIN Max 3 also includes useful expansion options such as USB4 and HDMI 2.1. This makes it suitable not only for handheld gaming, but also for desktop-style use with external displays, docks, storage, and compatible USB4 accessories.

How It Compares With the GPD WIN Max 2

Compared with the GPD WIN Max 2, the WIN Max 3 looks like a more complete redesign on paper rather than a simple specification update.

The display moves to a faster 165Hz AMOLED panel. The processor platform steps up to Ryzen AI Max+ options. The integrated graphics move to a higher class, the memory ceiling is higher, and the device supports a much more modular structure.

The removable battery is perhaps the most visible difference. Instead of relying only on an internal battery, the WIN Max 3 uses a front-mounted module that affects both runtime and ergonomics. The optional external cooling module also gives the device a more flexible high-performance path.

In short, the WIN Max 2 was already a compact gaming laptop with handheld controls. The WIN Max 3 pushes that concept further by making the whole device more adaptable.

Who Should Pay Attention to the GPD WIN Max 3?

The GPD WIN Max 3 is not aimed at just one type of user.

For handheld PC gamers, it offers built-in controls, strong integrated graphics, and a high-refresh AMOLED screen. For mobile workers, it includes a real keyboard, touchpad, ports, and a compact laptop form. For travelers, the removable battery design and small footprint make it easier to use one device for games, work, media, and communication.

It may also appeal to creators, developers, and users interested in local AI workflows who care about memory capacity, storage expansion, and docking options. The WIN Max 3 is not just trying to replace a handheld console. It is positioned between a gaming handheld, a mini laptop, and a portable productivity machine.

FAQ

Is the GPD WIN Max 3 battery removable?

Yes. The GPD WIN Max 3 uses a removable 97Wh magnetic battery module that attaches to the front of the device.

Does the GPD WIN Max 3 have an AMOLED display?

Yes. It features a 9.06-inch AMOLED display with up to 165Hz refresh rate, HDR10 support, and 2400 × 1504 resolution.

Is the external cooling module included?

Available product information describes external cooling as a modular option. The included accessories may depend on the selected package or retail configuration, so buyers should check the final product listing before ordering.

Is the GPD WIN Max 3 more like a handheld or a laptop?

It sits between both categories. It has built-in gaming controls like a handheld, but also includes a keyboard, touchpad, ports, and a clamshell laptop design.

Is the GPD WIN Max 3 performance confirmed by hands-on testing?

This preview is based on currently available product information and listed specifications. Final real-world performance, sustained power behavior, battery life, thermals, and noise levels should be confirmed through retail hardware testing.

Final Thoughts

The GPD WIN Max 3 is not only about chasing higher numbers. Its biggest change is the way it rethinks the form of a handheld gaming laptop.

With a 9.06-inch AMOLED display, Ryzen AI Max+ platform, removable 97Wh battery, modular cooling support, strong expansion options, and a more flexible body design, the WIN Max 3 looks like a major step forward for the WIN Max series on paper.

Final real-world performance, battery life, thermals, and noise levels will still depend on retail hardware and independent testing. Based on the currently listed specifications, the WIN Max 3 appears to be one of GPD’s most ambitious compact gaming laptop designs so far.
