For years, PC handhelds required a clear sacrifice: you either settled for lower graphics settings or accepted short battery life. The AMD Ryzen™ AI Max+ 395 (codenamed Strix Halo) addresses this trade-off by bringing desktop-grade compute power and memory bandwidth into a single mobile processor.
Here is a practical breakdown of how this architecture works and what it delivers on modern handhelds like the GPD WIN 5.
Key Hardware Upgrades
1. Radeon™ 8060S iGPU (40 Compute Units)
Most handheld APUs feature 8 to 12 Compute Units. The 8060S packs 40 CUs on AMD's RDNA™ 3.5 architecture, giving its integrated graphics hardware specs comparable to dedicated mid-range desktop GPUs.
2. Unified LPDDR5x Memory Bus (Up to 128GB)
Integrated GPUs usually struggle with memory bottlenecks. By using an ultra-wide 256-bit memory bus with support for up to 128GB LPDDR5x RAM, the chip ensures smooth texture rendering in VRAM-heavy games.
3. Zen 5 Architecture + 50+ TOPS NPU
Built on 16 cores and 32 threads, the Zen 5 CPU handles background tasks and multi-threading cleanly, while the NPU manages power efficiency and local AI workloads.
Power Efficiency & Real-World Performance
The Ryzen AI Max+ 395 scales smoothly across different TDP profiles:
| 15W – 25W TDP | Indie titles & lightweight gaming (Max battery life) |
| 25W – 40W TDP | Handheld Sweet Spot: 1080P 60+ FPS in AAA titles |
| 60W+ Docked | Desktop-Replacement Mode: High refresh rates / 4K outputs |
💡 Optimization Tip: In the BIOS, disabling unused CPU cores frees up power headroom for the Radeon 8060S GPU, boosting frame rates at lower TDPs without drawing extra battery.
Benchmarks on GPD WIN 5 (1080P Target)
- Cyberpunk 2077 (Medium / FSR Quality): 65 – 80 FPS
- Forza Horizon 5 (High Settings): 90 – 110 FPS
- Elden Ring (High Settings): 60 FPS (Locked)
How the GPD WIN 5 Integrates the Chip
Housing a high-bandwidth APU requires tailored thermal and hardware design. The GPD WIN 5 matches the processor's output with:
- 7.0" 1080P 120Hz LTPS Display: VRR support prevents screen tearing during frame rate swings.

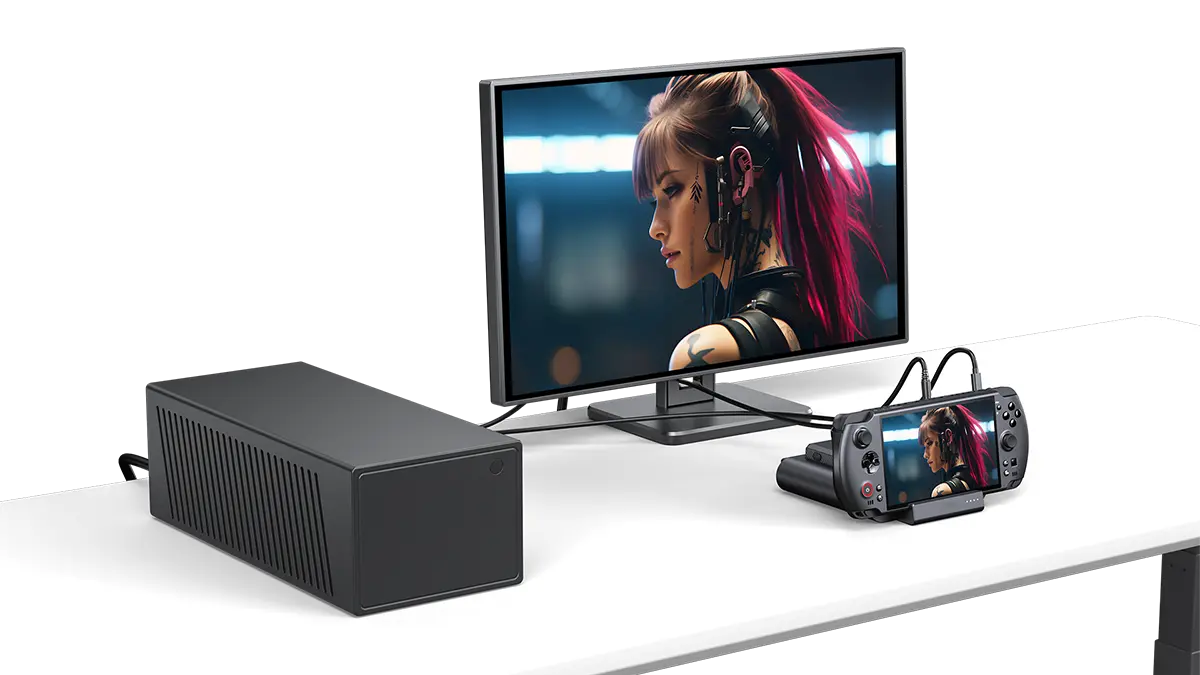

- Detachable 80Wh FlexPower Battery: Detaching the battery package drops the handheld’s weight down to 565g, reducing wrist fatigue during docked or desk play.
- Hot-Swappable Mini SSD Slot: Quickly swap game libraries without opening the main chassis.
- GPD Tool Software: Easily switch TDP targets and performance modes on the fly.
Final Thoughts on Strix Halo
For a long time, handheld PCs felt limited by their integrated graphics. You could run modern AAA games, but usually only with heavy compromises on resolution or rendering quality.
What makes the Ryzen AI Max+ 395 noteworthy isn't just higher benchmark scores; it's the way it closes the gap between mobile APUs and dedicated desktop graphics. By pairing 40 CUs with massive memory bandwidth, AMD built a chip that lets devices like the GPD WIN 5 handle demanding titles natively at 1080p without relying on external eGPUs. It doesn't eliminate power limits entirely, but it noticeably shifts what we can expect from a portable device.
